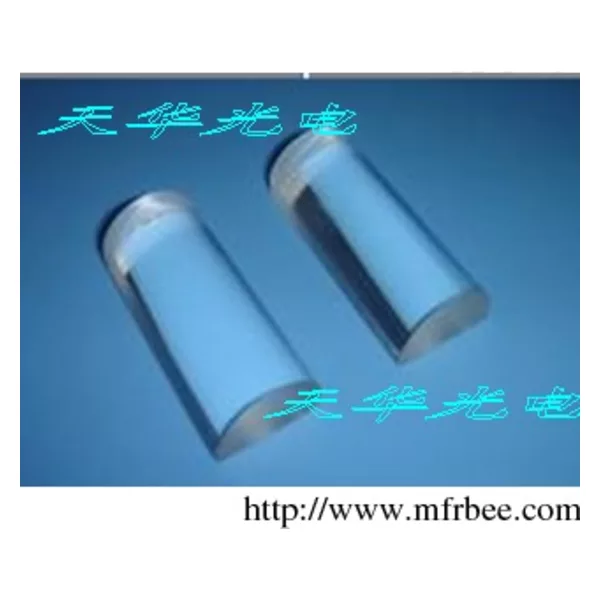

Plano-Convex Cylindrical Lenses

Plano-Convex Cylindrical Lenses, also known as Plano-Convex Cylinder Lenses, generally used for one dimensional magnification or stretching an image in one dimension only.Plano-Convex Cylindrical lenses have a positive focal length, which makes them ideal for collecting and focusing light for many imaging applications.

The demision of cylindrical lens as follow:

Material: BK7 or other optical materials

Dimension Tolerance: +0.0~-0.1mm

Center Thickness: +/-0.1mm

Focal Length Tolerance:+/-1%

Surface Quality: 40/20

Surface Figure: λ/4

Centration:＜3arcmin

Clear Aperture >90%

Chamfer: 0.2mm at 45 degree typical

Coating: Optional.

We will also do according to the specifications such as size, structure, material, surface treatment and so on that the customers required. We supply them with good quality and low price. Please contact us to know details. Besides, there are a large volume of optical components in various shapes and sizes in stock to facilitate quick deliveries.
