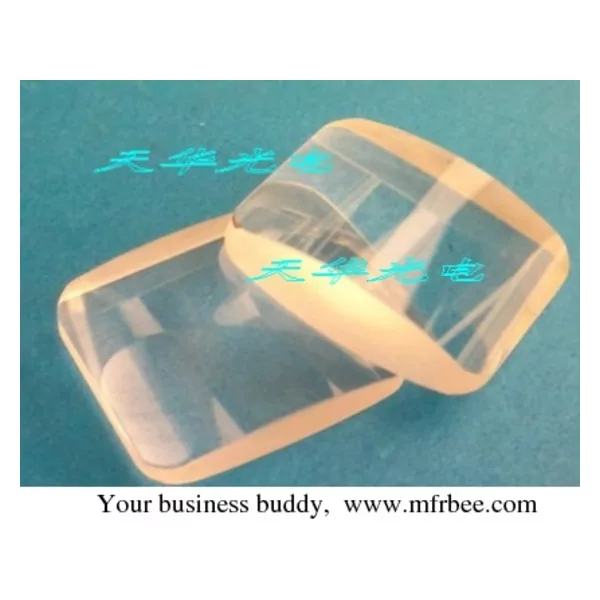

Bi-Convex Cylindrical Lense

Bi-Convex Cylindrical Lenses

Material: BK7 or other optical materials

Center Thickness:±0.2mm ~ ±0.03mm

Focal Length Tolerance±2% ~ ±0.5%

Surface Quality:60/40 ~ 10/5

Surface Figure:λ/2 /632.8nm ~ λ/20 /632.8nm

Centration:5arcmin~1arcmin

Clear Aperture: 80%~90%
Chamfer: 0.2mm at 45 degree typical

We will also do according to the specifications such as size, structure, material, surface treatment and so on that the customers required. We supply them with good quality and low price. Please contact us to know details. Besides, there are a large volume of optical components in various shapes and sizes in stock to facilitate quick deliveries.
