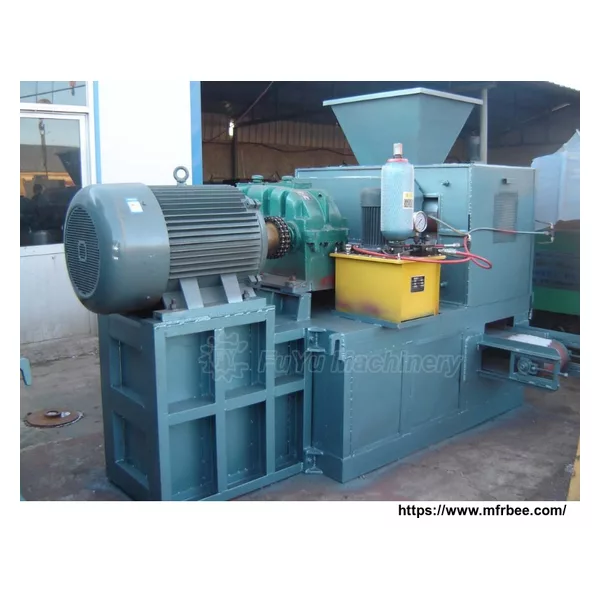

FY-800 Briquette Machine for Desulfurization Gypsum

Applications
Desulfurization gypsum briquette machine can press the desulfurization gypsum powder that have high moisture content into a ball disposable without any binders, big capacity and forming rate. Purity is guaranteed, directly formed into balls, high strength, suitable for all kinds of transportation, reduce packing costs, improve product transport capacity. Then supply to the cement plants to replace the natural gypsum for cement retarder. Desulfurization gypsum briquette machine has opened a new page of desulfurization gypsum ball press. Truely achieved power plant waste recycling. This machine can use for pressing gypsum powder, iron powder, coking coal, scrap iron, etc. This process has already used in power plants, cement plants, cement retarder plants and widely used gypsum plant.
Advantages
1.Compact structure, convenient repair
2.Simple operation, short process flow
3.Long energy consumption, low failure rate
4.The end products shape can be all shapes and smokeless, non-toxic, none peculiar
4.High quality, long service life

The Working Principle
Gypsum pressure ball machine by the main motor: The V-belt, spread reducer: decelerator through the coupling, and then transmitted to the drive shaft by a split gear, ensure that the two rollers synchronization (constant reverse) and the driven roller were against by a piston of the hydraulic cylinder(constant pressure withstood by the oblique iron), the hydraulic circuit, hydraulic control and accumulator to ensure the system pressure, materials from the storage bin through the quantitative equipment evenly into the molding machine, via the the adjusting of the adjusting shutter on the hopper, so that the material evenly into the middle of the roll, constant reverse operation of the double rolls proceed the material compression, the unit forming pressure is from small to big, forming pressure reaches a maximum in the center line of the double rolls, after the material pass the line, forming pressure quickly diminished so that materials into the ball off state, well off the ball.
Technical Parameters
