Robust Radiator Modules are versatile, high temperature heating components that are capable of reaching tempera tures of up to 1700°C. Unlike a high temperature furnace, Robust
Radiators are more commonly used as components of a larger system. Because of their profile, Robust Radiator uses include zone heating, crucible heating, pipe heating or other applications requiring
high temperatures and high versatility. Robust Radiators™ are available with optional end caps to achieve higher chamber temperatures.

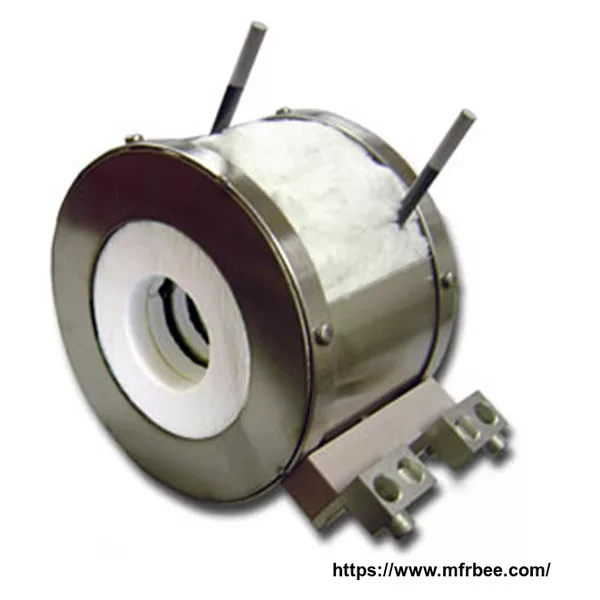

Robust Radiators may be used in vertical or horizontal orientations, allowing for a diverse array of applications. An optional stainless steel shell adds highly accessible terminal
connectors to the already robust design.
Advantages:
All of Robust Radiator Modules are made to order and if you have specific needs, such as space requirements, we
will be happy to provide a personalized recommendation that will fit your needs.
Horizontal and Vertical Use
Max Temperature: Chamber Temperature 1700°C
Max Power: See Table on Model Specifications
Dimensions: See Table on Model Specifications
Electrical Specs: 208/220/240V or 480V
Model
|
Max Power
(Watts)
|
Heated
Length (A)
|
Overall
Length (B)
|
ID (C)
|
OD (D)
|
JK01
|
825
|
2 in
|
4 in
|
1 in
|
5 in
|
JK02
|
1425
|
2 in
|
4 in
|
2 in
|
6 in
|
JK03
|
2925
|
2 in
|
4 in
|
4 in
|
8 in
|
JK04
|
3075
|
3 in
|
5 in
|
3 in
|
7 in
|
JK05
|
350
|
0.25 in
|
3 in
|
1.5 in
|
3.5 in
|
JK06
|
2175
|
4 in
|
6 in
|
1.5 in
|
5.5 in
|
JK07
|
2775
|
3 in
|
5 in
|
5 in
|
9 in
|
JK08
|
2850
|
4 in
|
6 in
|
2 in
|
6 in
|
JK09
|
2925
|
4 in
|
6 in
|
4 in
|
8 in
|
JK10
|
3300
|
6 in
|
8 in
|
3 in
|
7 in
|
JK11
|
3750
|
3 in
|
5 in
|
7 in
|
11 in
|
Application:
Examples of how the Robust Radiator has been used....
Multi-Zone Furnaces
Tube Heating
Annealing
Wafer Productions
Crystal Growth
Material Testing
