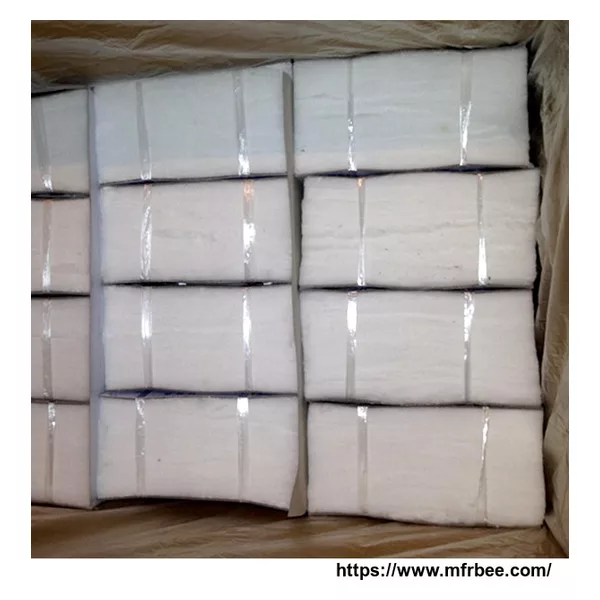

Fiber Veneering Modules is from polycrystalline mullite fiber by special process finishing cutting, compression for
med. Does notcontain any binders or other ingredients, with excellent elasticity and flexibility, the maximum temperature up to 1600 ℃. They oxidizing atmosphere, the neutral
atmosphere or a partial reduction atmosphere, the longterm bear this temperature, still maintain their original toughness, strength, flexibility and fiberstructure, and
non-residue ball, can be used by a variety of high-temperature industrial furnaces hot face lining paste,has
a special significant ins ulation performance and is the crystallization of high-tech industrialization.
Features
Low heat storage
low thermal conductivity
thermal shock resistance
good sound-absorbing properties
heat-reflective high-performance
uniform fiber diameter
excellent chemical stability
anti-air scour
Product parameter
Model
|
Classification ; Temperature
|
Al3O2
|
SiO2
|
Bulk ; density kg/m3
|
Thermal ; conductivity (w/m.k)
|
Reheating ;linear ; shrinkage
|
Fiber ; diameter
|
Heat
|
Melting
|
PMM-01
|
1700℃
|
95%
|
5%
|
100
|
1000-0.226 1200-0.295
1300-0.337
1400-0.387
|
1600×6H<1%
|
3-5
|
1024kj/kg.k
|
1840C
|
PMM-02
|
1600℃
|
72-75%
|
25-28%
|
100
|
1000-0.226
1200-0.295
1300-0.337
1400-0.387
|
1500×6H<1%
|
3-5
|
1024kj/kg.k
|
1840C
|
Note: The technical data is determined by the testing standards used were, on average, will fluctuate within a certain range, the data do not represent the product quality
assurance data.
Application
Heating furnace, heat treatment furnace, shuttle kiln, tunnel kiln, roller kiln, door, lid closed
Product Common Specifications
200x100x(30-100)mm;
300x300x(50-100)mm
