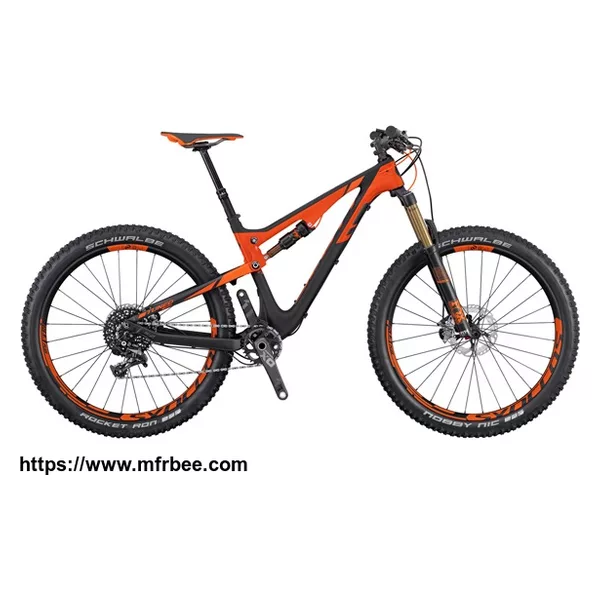

2016 Scott Genius 700 Tuned Plus Mountain Bike

Frame
Genius PLUS Carbon / IMP / HMX /
BB92 / Alloy swingarm with 180PM
U-Mono Link / Tapered Headtube
IDS SL dropouts for 148×12mm Boost
3.0" Tire clearance / BB height adj.
130mm rear travel
Travel
Front 140mm
Rear 130mm
Fork
FOX 34 Float Factory Air / Kashima
FIT4 3-Modes with low speed adj.
Boost 14×110mm QR axie / tapered steerer
Lockout / reb.Adj. / 140mm travel
Rear Shock
FOX Nude / SCOTT custom w.travel / geo adj
DPS 3 modes: Lockout - Traction Control -
Descend / Kashima / EVOL / reb.Adj.
Travel 130 - 90 - Lockout / 190×50mm
Remote System
SCOTT TwinLoc Downside Remote
3 modes front and rear / integ. Grip clamp
Headset
Syncros FL1.5 / Tapered 1.5" - 1 1/8"
semi integ. OD 50/61mm / ID 44/55mm
Rear Derailleur
SRAM X01, 11 Speed
Front Derailleur
SCOTT Chainguide / DM
Shifters
SRAM X01 Trigger right only
multi adj. / with Carbon cap
Brakes
Shimano XTR M9020 Disc / Pads w/Fin
180/F and 180/Rmm SM-RT99 CL Icetech Rotor
Crankset
SRAM X01 GXP Boost PF / DM
Carbon crankarm / QF 168 30T
BB-Set
SRAM GXP PF integated / Shell 41×89.5mm
Handlebar
Syncros FL1.0 Carbon T-Bar
T shape Flat / 9° / 740mm
Syncros Pro lock-on grips
H'stem
Syncros TR1.0 Carbon
7050 Carbon wrapped / oversize 31.8mm
1 1/8" / +6° angle
Seatpost
Rock Shox Reverb Stealth 125
inside hydraulic remote system / 31.6mm
Seat
Syncros XM1.0 / Carbon rails
Hub (Front)
Syncros TR1.5 PLUS CL / Boost 15×110mm
Made by DT Swiss
Hub (Rear)
Syncros TR1.5 PLUS CL / Boost 148×12mm
RWS axie / 36T Rachet System / XD
Made by DT Swiss
Chain
SRAM PCX1
Cassette
SRAM XX1 / XG1195, 10-42T
Spokes
DT Swiss Aero Comp
Rims
Syncros TR1.5 PLUS
28H / Tubeless Ready
Tires
Schwalbe
Front Nobby Nic EVO / 2.80×27.5
Rear Rocket Ron EVO / 2.80×27.5
PaceStar compound / Tubeless Easy
Weights
12.30kg / 27.12lbs
