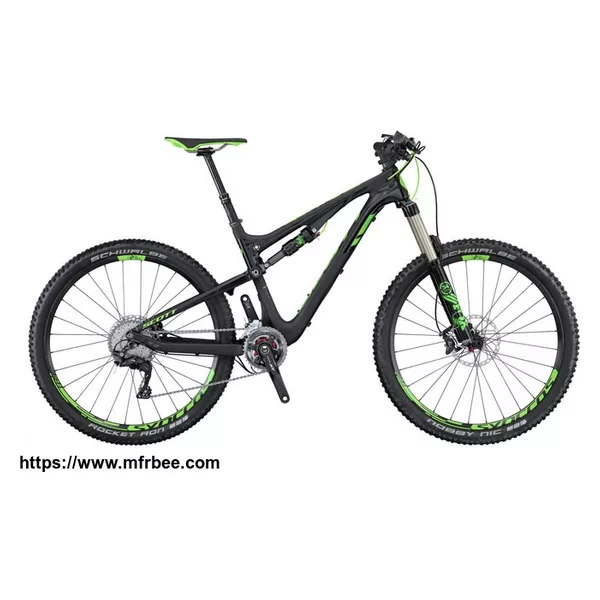

2016 Scott Genius 710 Mountain Bike

Frame
Genius Carbon / IMP / HMF /
BB92 / Alloy swingarm with 180PM
U-Mono Link / Tapered Headtube
IDS SL DM dropouts for 142x12mm
BB height adj.
Travel
700 Series: Front 150mm
Rear 150 - 100 - Lockout / Shock 200X57
900 Series: Front 140mm
Rear 130 - 90 - Lockout / Shock 190X50
Fork
FOX 34 Float Performance Elite Air
FIT4 3-Modes with low speed adj.
15mm QR axle / tapered steerer
Lockout / reb. Adj.
Rear Shock
FOX Nude / SCOTT custom w. travel / geo adj
DPS 3 modes: Lockout - Traction Control -
Descend / EVOL / reb. Adj.
Remote System
SCOTT TwinLoc Remote Technology
3 modes front and rear / integ. clamp
Headset
Syncros FL1.5 / Tapered 1.5" - 1 1/8"
semi integ. OD 50/61mm / ID 44/55mm
Rear Derailleur
Shimano XT RD-M8000 DSGS / DM
Shadow PlusType / 22 Speed
Front Derailleur
Shimano XT FD-M8025-E / DM
Shifters
Shimano XT SL-M8000
Rapidfire Plus / 2 way release
Brakes
Shimano XT M8000 Disc
180/F and 180/Rmm SM-RT64 CL Rotor
Crankset
Shimano XT FC-M8000-2
Hollowtech 2
700 Series: 36x26 T / 900 Series: 34x24 T
BB-Set
Shimano SM-BB71-41A / shell 41x92mm
Handlebar
Syncros FL1.5 T-Bar
Alloy 7050 D.B. / T shape Flat / 9° / 740mm
Syncros Pro lock-on grips
Handlebar Stem
Syncros TR1.5
2014 / 4D forged / oversize 31.8mm
1 1/8" / 700 Series: +6° / 900 Series: -6°
Seatpost
Rock Shox Reverb Stealth 125
inside hydraulic remote system / 31.6mm
Seat
Syncros XM1.5 / Titanium rails
Hub (Front)
Syncros TR2.0 CL / 15mm
made by DT Swiss
Hub (Rear)
Syncros TR2.0 CL / 142x12mm / RWS axle
made by DT Swiss
Chain
Shimano CN-HG600
Cassette
Shimano XT CS-M8000
11-40 T
Spokes
DT Swiss Competition 2.0-1.8-2.0 Black
Rims
Syncros TR2.0
28H / Tubless ready
Tires
Schwalbe
Front: Nobby Nic EVO / 2.25
Rear: Rocket Ron EVO / 2.25
PaceStar compound / Tubeless Easy
Weight
12.4kg/27.34lbs
