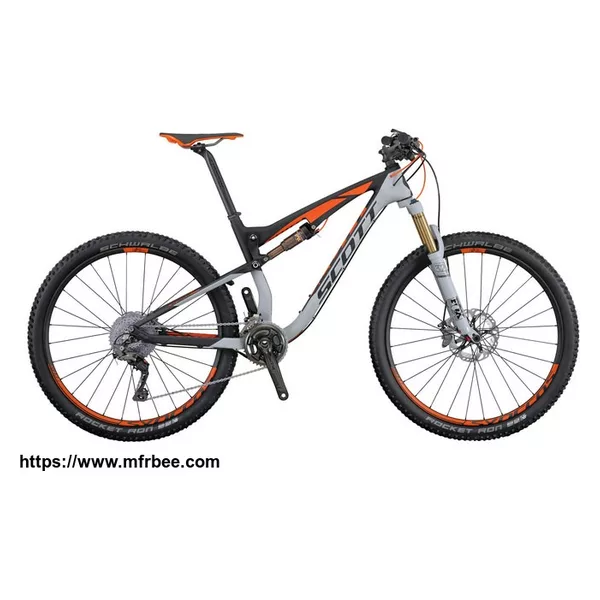

2016 Scott Spark 700 Premium Mountain Bike

Frame
Spark Carbon / IMP technology / HMX /
BB92 / Carbon swingarm with 160PM
U-Mono Link / Tapered Headtube
IDS SL DM dropouts for 142x12mm
BB height adj.
Travel
700 Series: Front 120mm
Rear 120 - 85 - Lockout / Shock 190X50
900 Series: Front 100mm
Rear 100 - 70 - Lockout / Shock 165x38
Fork
FOX 32 Float Factory Air / Kashima
FIT4 3-Modes with low speed adj.
15mm QR axle / tapered steerer
Lockout / reb. Adj.
Rear Shock
FOX Nude / SCOTT custom w. travel / geo adj
DPS 3 modes: Lockout - Traction Control -
Descend / Kashima / reb. Adj.
Remote System
SCOTT TwinLoc Remote Technology
3 modes front and rear / integ. Grip clamp
Headset
Syncros FL1.5 / Tapered 1.5" - 1 1/8"
semi integ. OD 50/61mm / ID 44/55mm
Rear Derailleur
Shimano XTR RD-M9000 SGS / DM
Shadow Plus Type / 22 Speed
Front Derailleur
Shimano XTR FD-M9025-E / DM
Shifters
Shimano XTR SL-M9000-I
Rapidfire Plus / 2 way release
Ispec 2 clamp
Brakes
Shimano XTR M9000 Disc
180/F and 160/Rmm SM-RT99 CL Icetech Rotor
Crankset
Shimano XTR FC-M9020-2
Hollowtech 2 / QF 168
700 Series: 36x26 T / 900 Series: 34x24 T
BB-Set
Shimano SM-BB94-41A / shell 41x89.5mm
Handlebar
Syncros FL1.0 Carbon T-Bar
T shape flat / 9° / 720mm
Syncros Pro lock-on grips
Handlebar Stem
Syncros FL1.0
7050 Carbon wrapped / 31.8mm / 1 1/8"
700 Series: +6° / 900 Series: -6°
Seatpost
Syncros FL1.0 Carbon / 31.6mm
Seat
Syncros XR1.5 / Titanium rails
Hub (Front)
Syncros XR1.5 CL / 15mm
made by DT Swiss
Hub (Rear)
Syncros XR1.5 CL / 142x12mm / RWS axle
36T Rachet System / made by DT Swiss
Chain
Shimano CN-M900-11
Cassette
Shimano XTR CS-M9000
11-40 T
Spokes
DT Swiss Aero Comp
Rims
Syncros XR1.5
28H / Tubeless ready
Tires
Schwalbe Rocket Ron EVO / 2.25
127EPI Kevlar Bead
Tubeless Easy / PaceStar compound
Weights
10.35Kg/22.82Lbs
