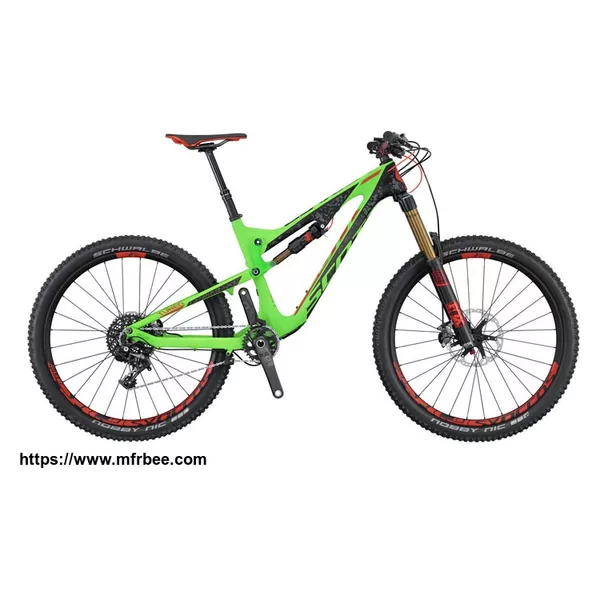

2016 Scott Genius LT 700 Tuned Mountain Bike

Frame
Genius LT 700 Carbon / IMP5 / HMX /
BB92 / Carbon swingarm with 180PM
U-Mono Link / Tapered Headtube
IDS SL 142x12mm / integ. Chainguide
BB height adj. / 170mm rear travel
Travel
Front and Rear: 170mm
Fork
FOX 36 Float Factory Air / Kashima
FIT4 3-Modes with low speed adj.
15mm QR axle / tapered steerer
Lockout / reb. Adj. / 170mm travel
Rear Shock
FOX Nude / SCOTT custom w. travel / geo adj
DPS 3 modes: Lockout - Traction Control -
Descend / Kashima / EVOL / reb. Adj.
Travel 170 - 110 - Lockout / 215x63mm
Remote System
SCOTT TwinLoc Downside Remote
3 modes front and rear / integ. Grip clamp
Headset
Syncros FL1.5 Tapered / 1.5" - 1 1/8"
semi integ. OD 50/61mm / ID 44/55mm
adj. headangle -0.7° with cup
Rear Derailleur
SRAM XO1
11 speed
Front Derailleur
SCOTT Chainguide Top and Bottom
Shifters
SRAM XO1 Trigger right only
multi adj.
Brakes
Shimano XTR M9020 Disc J-Kit
203/F and 180/Rmm SM-RT81 CL Rotor
Crankset
SRAM XO1 GXP PF / DM
Carbon crankarm / QF 168
30 T
BB-Set
SRAM GXP PF integrated / shell 41x89.5mm
Handlebar
Syncros AM1.0 Carbon 10mm Rise / 35mm
9° / 760mm
Syncros Pro lock-on grips
Handlebar Stem
Syncros XM1.5
35mm HB diameter / 0° angle
Seatpost
Rock Shox Reverb Stealth
inside hydraulic remote system / 31.6mm
S size 125mm / M and L 150mm
Seat
Syncros XM1.0 / Carbon rails
Hub (Front)
Syncros AM1.5 CL / 15mm
made by DT Swiss
Hub (Rear)
Syncros AM1.5 CL / 142x12mm / RWS axle
36T Rachet System /XD / made by DT Swiss
Chain
SRAM PCX1
Cassette
SRAM XO1 /XG1195
10-42 T
Spokes
DT Swiss Aero Comp
Rims
Syncros AM1.5
28H / Tubeless ready
Tires
Schwalbe
Front: Nobby Nic EVO / 2.35x27.5 / TrailStar
Rear: Nobby Nic EVO / 2.35x27.5 / PaceStar
67 EPI / Kevlar / Snake Skin / Tubeless Easy
Weight
12.1kg/26.68lbs
