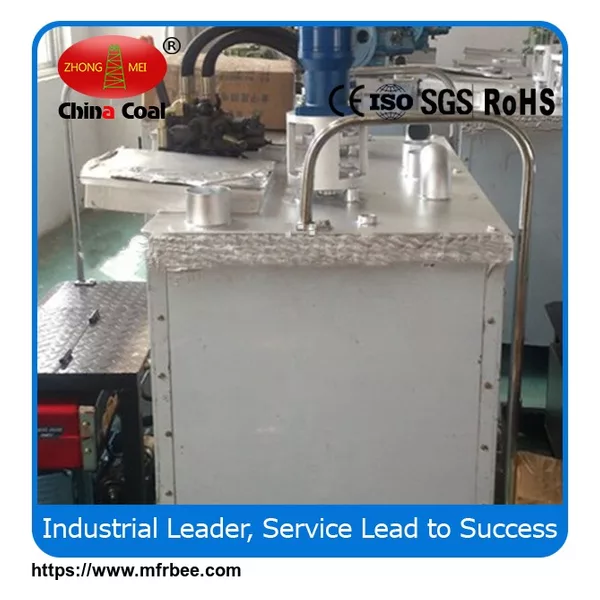

Mechanical Double Cylinder Thermoplastic Hot Melt Kettle

Mechanical Double Cylinder Thermoplastic Hot Melt Kettle 800
chinacoal07:Hot Melt Kettle,Double Cylinder Thermoplastic Hot Melt Kettle,Mechanical Double Cylinder Thermoplastic Hot Melt Kettle 800
Product Introduction
Hydraulic double cylinder fusing kettle is the major equipment for fusing marking .

Integrated multiplex hydraulic driving and stepless speed changing are adopted in the

equipment which guarantee big pitch of strand ,loaded operation and excellent function .

It features forward and reverse and reverse stir .Imported energy saving burner of four

ring fire is also adopted to make sure the burning efficiently happened.The equipment

boosts efficient fusing ,long lasting work hours,easy operation ,less time consumed and

easy maintenance.
Main Parameter
Engine 15PS water-cooled electric start up diesel engine
Hydraulic driving system integrated multiplex hydraulic control valve,forward and reverse stir and
step less speed changing
Hydraulic motor Model BM
Cubage of hydraulic gasoline box 70L
Kettle cylinder capacity 400L×2/500L×2
Structure Frame structure , insulation is fixed between intemalbladder and ektexine
Heating system petroleum dry gas (50kg jar com-mended) and imported highly efficient four ring burner
Safety facility flooding facility of overload is designed for it to prevent maloperation
Dimension and weight 1800×1500×1600mm/1900×1700×1700mm
Net weight 800kg/900kg
