Product Introduction
Chinacoal10

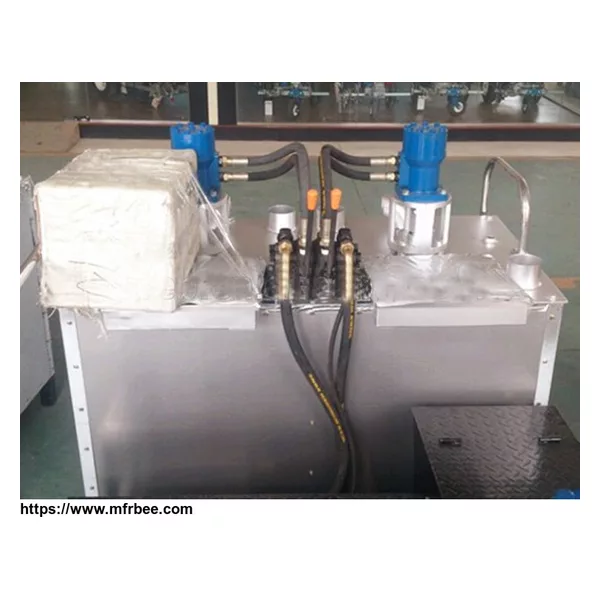

Hydraulic double cylinder fusing kettle is the major equipment for fusing marking .
Integrated multiplex hydraulic driving and stepless speed changing are adopted in the
equipment which guarantee big pitch of strand ,loaded operation and excellent function .
It features forward and reverse and reverse stir .Imported energy saving burner of four
ring fire is also adopted to make sure the burning efficiently happened.The equipment
boosts efficient fusing ,long lasting work hours,easy operation ,less time consumed and
easy maintenance.
Main Parameter
Engine | 15PS water-cooled electric start up diesel engine |
Hydraulic driving system |
integrated multiplex hydraulic control valve,forward and reverse stir and
step less speed changing |
Hydraulic motor | Model BM |
Cubage of hydraulic gasoline box | 70L |
Kettle cylinder capacity | 400L×2/500L×2 |
Structure | Frame structure , insulation is fixed between intemalbladder and ektexine |
Heating system | petroleum dry gas (50kg jar com-mended) and imported highly efficient four ring burner |
Safety facility | flooding facility of overload is designed for it to prevent maloperation |
Dimension and weight | 1800×1500×1600mm/1900×1700×1700mm |
Net weight | 800kg/900kg |
