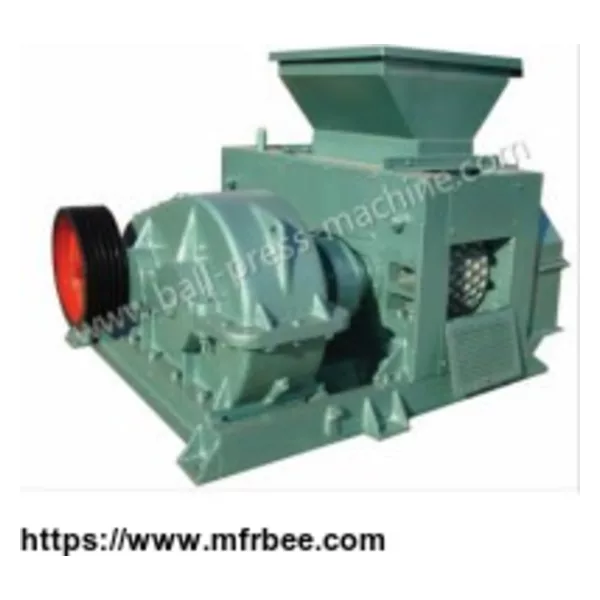

Good Performance Magnesium powder briquette machine

1. Product introduction:
Magnesium powder briquette machine is the raw material after pulverization directly on production, without adding water. Such as: aluminum scrap, activated carbon alumina, lime, etc., the purpose is to reduce dust, control capacity, return to use, improve the transport characteristics and other capacity design.

Magnesium powder briquette machine is mainly used for making ball non-ferrous and ferrous metal mineral block, directly into the furnace, improve the added value. All metallurgical industry wastes, auxiliary materials need to be on the furnace, all need to complete the ball machine. For example: dust, mud, oxide skin, slag, iron powder, aluminum ash, silicon manganese ore, etc.. Mainly used for ball - colored and black metallic mineral block, directly into the furnace, improve the added value. All metallurgical industry wastes, auxiliary materials need to be on the furnace, all need to complete the ball machine. For example: dust, mud, oxide skin, slag, iron powder, aluminum powder and silicon manganese ore.

2. Working principle:
Magnesium powder briquette machine host is powered by an electromagnetic speed regulating motor through a belt pulley and a cylindrical gear reducer to drive shaft through pin coupling. Synchronous operation of active shaft and passive shaft through open gear. A hydraulic device is arranged at the rear of the passive bearing seat. The screw feeding device is driven by an electromagnetic speed regulating motor, and by a belt wheel, the worm wheel is rotated, and the material is forced into the feeding port.

Magnesium powder briquette machine hydraulic protection device is composed of hydraulic pump high pressure oil into the hydraulic cylinder, the piston to produce axial displacement. The front of the piston rod is connected to the bearing base to meet the requirements of production pressure. When the two roll into the material or into the metal block, the hydraulic cylinder piston rod pressure overload, the hydraulic pump will stop, the accumulator to the pressure change from the buffer, the overflow valve to open the back oil, piston rod shift so that the pressure roller gap between the hard material through the roller, the system pressure is restored to normal, can protect the roll is not damaged. The machine can adjust the pressure according to the requirements of the ball density, and it is flexible to produce.
