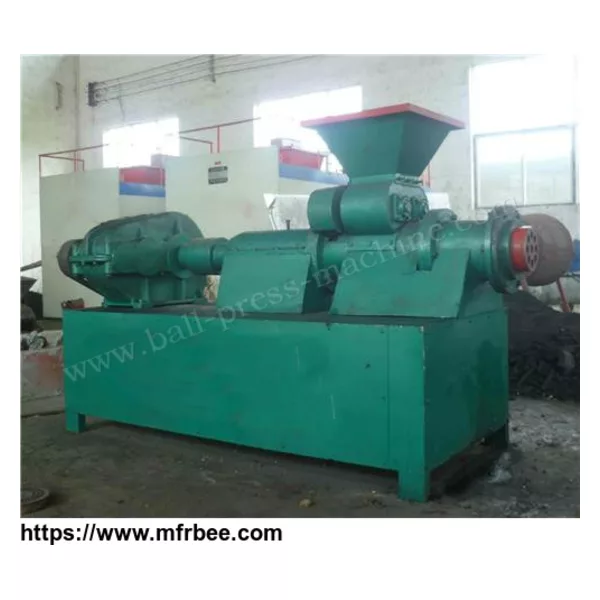

Coal rods extruded machine
1. Product introduction:
Coal rods extruder is a bar with a central hole in the center hole, which is made of powdery material without any binder.
2. Working principle:
The great machine is using saw dust, bamboo, bagasse as raw materials, through the spiral feeding, the wood fiber after high temperature and high pressure extrusion plasticizing.
3. Product function:
It is the powder material in the case of without any binder, after high temperature, high pressure process, and extrusion into the center hole of the rod like solid rods.
4. Installation and commissioning:
1. Before installation of parts must be thoroughly cleaned, the destruction of transportation or storage rust longer appears, and checks the components are damaged.
2. According to the basic map on the basis of concrete poured concrete, and left screw, after the solidification of the coal rod machine dipping in concrete based on screw alignment, two concrete grouting, anchor bolts to be solidified, correcting the mechanical level, mechanical stability to test machine.
Before the test machine will be the lubrication of lubrication, oil content is moderate. Check all the bolts if there is a loose phenomenon, and tighten. Point moving machinery to observe whether there is a foreign body or abnormal sound. All confirmed that no party can drive operation. And check whether the rotation direction is correct.
Mechanical air around 3~5 minutes after all can normal feeding trial production, new mechanical feeding should be uniform, moderate dry wet (generally 12%~15% water).
5. Use and maintenance:
1. Every shift before the boot of the rotation is flexible, there is no abnormal sound, empty machine running 2~3 minutes to feed production.
2. Raw materials must be processed, the maximum particle size of less than 3mm, adding water, binder, curing agent, can be used by mixing retting after 24 hours.
3. Feed the blockage, using wood or bamboo dredge, avoids the use of metal bar. 140 coal rod extrusion machine power: 11KW power: 11KW
Coal production: 1-2T carbon powder production: 500kg
180 coal rod extrusion machine power: 18.5KW power: 15KW
Coal production: 2-3T carbon powder production: 1000-1500kg
6. Technical parameter:
Mole | Throughput | Molding specification |
Spindle speed
(rev/min) |
Helical blade
number |
Electric machinery | Reducer | Bearing |
TF140 | 1-2t/h | ф20-40 | 46-60 | 4 |
11kw、 15kw |
ZQ350 | 7511、211、210、1305 |
TF180 | 2-3t/h | ф20-60 | 39-60 | 4 | 18.5kw、22kw | ZQ400 | 7511、211、210、1305 |
TF300 | 3-5t/h | ф20-80 | 35-60 | 4 |
37kw、 45kw |
ZQ650-750 | 32320、320、319、1207 |
Gongyi Fu Yu Machinery Co., Ltd. is a professional production of rod machine, coal rod machine, coal rod extrusion machine, drying machine equipment manufacturers, our official website: http://www.ball-press-machine.com.
