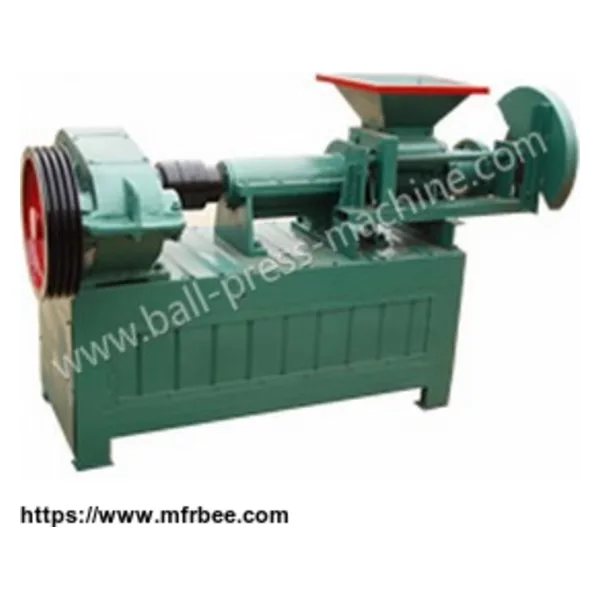

FY140-coal rods machine
1. Product introduction:
Coal rods machine is the use of screw extrusion principle, the modulation of coal into a certain intensity of a certain intensity of the cylindrical or plum shaped forming equipment.
Coal rod machine is the main equipment of the fuel system in the shaping process, it will fuel coal powder extruded into certain strength of the coal rod (according to the requirements of a variety of shapes, used to replace coal) into new combustion technology in gas making furnace. It can make full use of coal and reduce fuel costs.
2. Working principle:
The machine adopts variable pitch impeller, the coal powder in the back of the cylinder is pushed forward, the coal powder is compressed in the bucket, and the coal is formed by the hole of the front of the head. Coal rods in the course of advancing by gravity and natural fracture.
3. Technological advantage:
This machine adopts hardened reducer, small volume, and high bearing capacity. The impeller adopts thickening blade design, impeller and cylinder liner plate adopts wear-resisting casting material, the service life of 4-5 times higher than that of ordinary steel; machine head coal rod as the replaceable wear resistant alloy steel production, the replacement is convenient. The machine head and the tube body adopt the form of a cutter, which can be opened, and the replacement of the impeller and the cylinder liner is convenient.
4. Technical parameters:
Continuous production capacity | ≥4000 p /h | Scraper feeder speed | 33r/min |
Total pressure | 200T | Maximum filling depth | 90mm |
Pressed brick specification (length * width * height) | 240×115×53mm | Main motor | Y2-180L-6-15kw |
Each brick blocks | 2 block | Feeding machine | Y2-100L2-4-3KW |
Die hole number | 16 | Machine appearance size (length x width x height) | 2980×1175×2500mm |
Crankshaft speed | 35r/min | ||
CY_P{$R}_OE{$R}L
Rotary speed |
4r/min | Total weight | 10000kg |
Gongyi City Fu Yu Machinery Co., Ltd. is a professional production of rod machine, coal rod machine, coal rod extrusion machine, drying machine equipment manufacturers, our official website: http://www.ball-press-machine.com.
