2016 Competitive Price Lime powder briquette machine

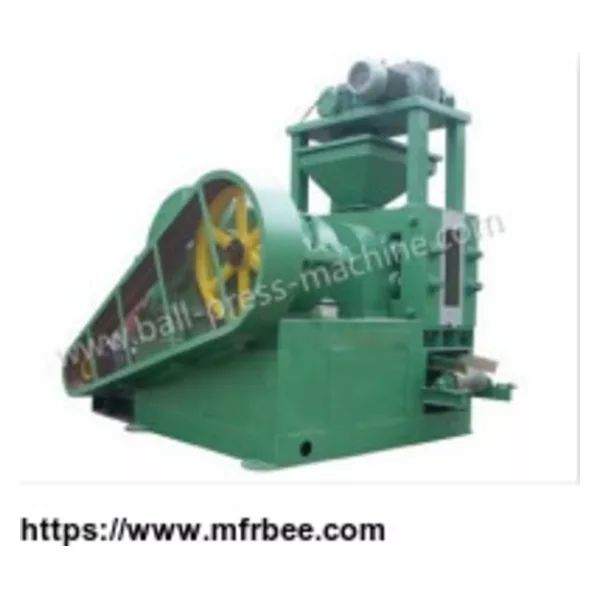

Lime powder briquette machine

1. Production introduction:

The lime powder briquette machine is the raw material after crushing, directly on the machine production, no need to add water. Such as: aluminum scrap, activated carbon alumina, lime, etc., the purpose is to reduce dust, control capacity, return to use, improve the transport characteristics and other capacity design.

The pellet shape of the lime powder briquette production determines the use of the material and the air permeability, which is the important factor in the whole process. In pressing the ball machine in actual use, the pellet shape is similar with irregular shape, so it's like coal, combustion air permeability is better, more complete combustion. If the pellet shape belongs to multi ribbed polygon, according to the technical theory, it's contact surface and angle, easy to form the structure, in the combustion and smelting of good, but in the process of processing mold is difficult, many enterprises cannot do, so the market is mainly based on circular shape. I plant in technology research and development and production process, the use of precision casting process, the use of nickel, chromium, manganese, molybdenum, titanium and other alloy material, with high strength, toughness, good wear resistance, etc..

2. Working principle:

Lime powder briquette machine host is powered by an electromagnetic speed regulating motor through a belt pulley and a cylindrical gear reducer to drive shaft through pin coupling. Synchronous operation of active shaft and passive shaft through open gear. A hydraulic device is arranged at the rear of the passive bearing seat. The screw feeding device is driven by an electromagnetic speed regulating motor, and by a belt wheel, the worm wheel is rotated, and the material is forced into the feeding port. If the supply is too large, the electrical overload is feeding device, feeding quantity is too small not into a ball. So skilled operation technique is an important condition to ensure the normal operation of the pressure.
