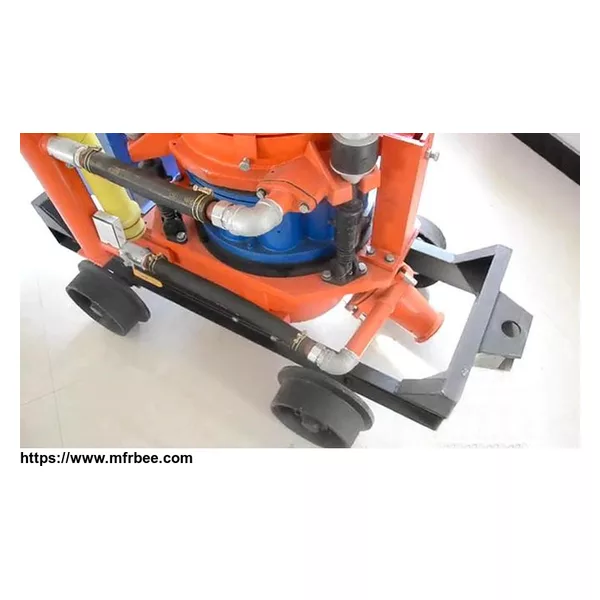

5PCZ 5 Concrete Spraying Machine
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 15 Days
Specifications
concrete spraying machine , shotcrete machine , Wet Concrete Spraying Machine
Usage chinacoal10
5PCZ-5-type spraying machine is widely used in construction, mining, tunnels, culverts, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations,various industrial furnaces, repairing or spraying refractory lining and Various green slope, soil transport and injection.
Feature
1. Through type rotary, non-sticky, unobstructed discharge, high efficiency and time-saving.
2. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to reduce air and dust leak and prolong consumption parts life.,
3. Using low-tension, high-speed vortex pneumatic transportation, so the spraying flow is even, continuous and steady. It's good to improve the shotcrete quality.
4. The new nozzle, discharge elbow device, improving spray deposition effect, less resilient, high quality shotcrete.
Technical Parameter
| Model: | 5PCZ 5 | Output: | 5~6m³/h |
| Max. Convey Distance : | horizontal: 200m, Vertical : 50m | Max. Aggregate Size: | Ø20mm |
| Hose Inner Size: | Ø20mm | Operating Pressure: | 0.12~0.4Mpa |
| Air Consumption: | 5-~8m³/min | Water-cement Ratio: | 0.4 |
| Duct Diameter: | 50mm | Feeding Height: | 1200mm |
| Motor Power: | 5.5Kw | Voltage Class: | 380V, 660V |
| Rail Distance: | 600mm, 900mm | Machine Quality: | 750Kg |
| Outer Size(L*W*H) : | 1300*740*1200mm |
