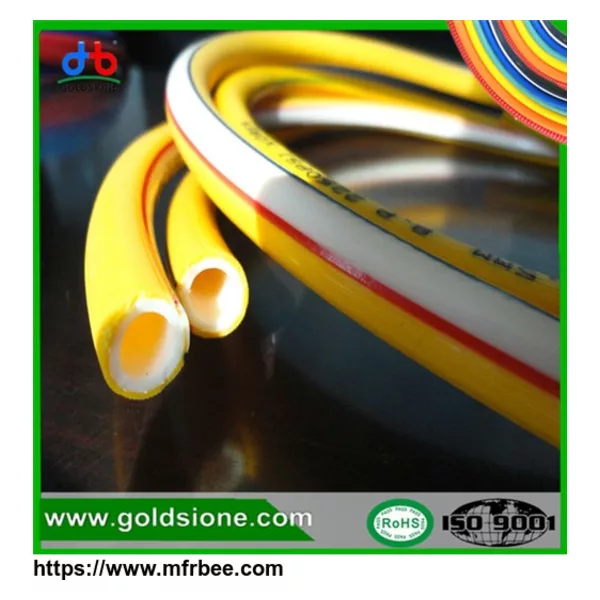

Hybrid Prenium PVC Pneumatic Air Hose
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- custom options
- Delivery
- 15 Days
Specifications
Product Description
1) PVC resin
2) multi-size available
3) flexible, resistant to erosion
CHARACTERISTICS：Being made of tough PVC materials and high tensile polyester reinforcement, this hose can work under very high working pressure. It is light, flexible, durable, anti-erosion, and explosion resistant.
APPLICATIONS：The hose is widely used in pneumatic tools, pneumatic washing apparatus, compressors, engine
components, machine service and civil engineering equipments.
working temperature : -10℃-65℃
The standard size of PVC Specialized Air Hose
| British | Metric Measurement | Length | W.P. | B.P. | Weight | Volume | |
| Measurement | I.D | O.D | |||||
| (inch) | (mm) | (mm) | (M) | (MPa) | (MPa) | (Kg/Roll) | (m3) |
| 1/4 | 6 | 11 | 100 | 2.0 | 9.0 | 9.10 | 0.038 |
| 5/16 | 8.5 | 14 | 100 | 2.0 | 8.5 | 13.50 | 0.065 |
| 3/8 | 10 | 16 | 100 | 1.8 | 8.0 | 16.60 | 0.075 |
| 1/2 | 13 | 20 | 100 | 1.8 | 7.5 | 24.8 | 0.085 |
| 5/8 | 16 | 25 | 50 | 1.7 | 6 | 19.6 | 0.056 |
| 3/4 | 19 | 28 | 50 | 1.5 | 5.2 | 21.5 | 0.067 |
| 1 | 25 | 34 | 50 | 1.5 | 4.5 | 27.5 |
0.090 |
