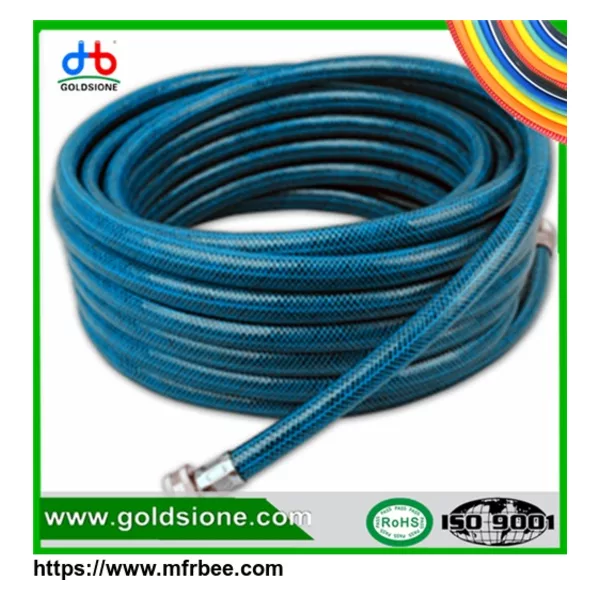

Product Description
1. Tube: flexible PVC
2. Reinforcement: High tensile synthetic fibre spiraled
3. Cover: Color as customer's requirement.
Description:
Applications: Mainly used for watering and irrigation for garden and cleaning in dialy.
Structure:
Tube: colourful flexible PVC
Reinforcement: High tensile synthetic fibre spiraled.
Cover: Clear flexible PVC
Characteristics: Many colors can choose, flexible, glossy. It is of good resistance to weather, ozone and ultraviolet light.
Working Temperature: -10℃ to +65℃
Technical Parameter of PVC Non-Torsion Garden hose
Measurement |
Outside Diameter
O.D.(mm) |
Working pressure
(Mpa) |
Burst Pressure
(Mpa) |
G/Mtr | |
Inch | I.D. (mm) | ||||
3/16 | 5 | 8 | 0.25 | 0.75 | 40 |
1/4 | 6 | 8 | 0.15 | 0.45 | 29 |
5/16 | 8 | 10 | 0.15 | 0.45 | 37 |
3/8 | 10 | 12 | 0.15 | 0.45 | 45 |
1/2 | 12 | 15 | 0.15 | 0.45 | 83 |
5/8 | 15 | 18 | 0.15 | 0.45 | 101 |
3/4 | 19 | 23 | 0.20 | 0.60 | 172 |
1 | 25 | 30 | 0.20 | 0.60 | 281 |
1-1/4 | 32 | 38 | 0.20 | 0.60 | 429 |
1-1/2 | 38 | 44 | 0.20 | 0.60 | 502 |
2 | 50 | 58 | 0.20 | 0.60 |
882 |
