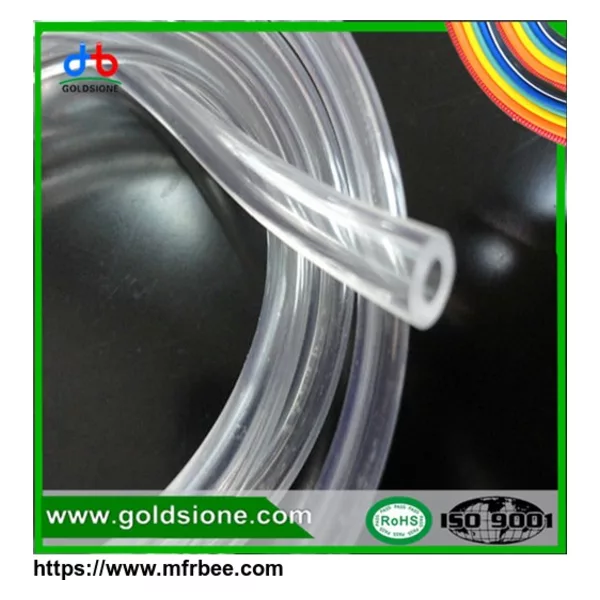

Product Description
1) clear, transparent, soomth
2) PVC resin
3) multi-size available
4) thickness 1mm to 4mm
5) flexible, resistant to erosion
Pls check the PVC clear hose all advantages:
APPLICATIONS:
1) the products is used for conveying water, oil, gas under normal working condition.
2)use in the factories, farm, ship, building and family.
3) construction project, industrial and mining enterprise
CHARACTERISTICS:
it is flexible, durable, non-toxic, without odor, and resistant to high pressure and erosion.
WORKING TEMPERATURE: -10℃-65℃
The standard size of PVC transparent soft Hose
Article No | Measurement | Diameter | Work pressure | Burst pressure | Fixed length | Weight | |
Inch |
I.D-
mm |
O.D-
mm |
Bar | Bar | Mtr | Kg/Mtr | |
PTSH-1 | 1/4” | 6 | 8 | 5 | 15 | 100 | 0.029 |
PTSH-2 | 5/16” | 8 | 10 | 5 | 15 | 100 | 0.038 |
PTSH-3 | 3/8” | 10 | 12 | 5 | 15 | 100 | 0.046 |
PTSH-4 | 1/2” | 12 | 15 | 3 | 9 | 50 | 0.084 |
PTSH-5 | 5/8” | 15 | 18 | 3 | 9 | 50 | 0.104 |
PTSH-6 | 3/4” | 19 | 22 | 3 | 9 | 50 | 0.128 |
PTSH-7 | 1” | 25 | 30 | 3 | 9 | 50 | 0.284 |
PTSH-8 | 1-1/4” | 32 | 38 | 3 | 9 | 40 | 0.43 |
PTSH-9 | 1-1/2” | 38 | 44 | 3 | 9 | 40 | 0.512 |
PTSH-10 | 2” | 50 | 58 | 3 | 9 | 40 | 0.9 |
