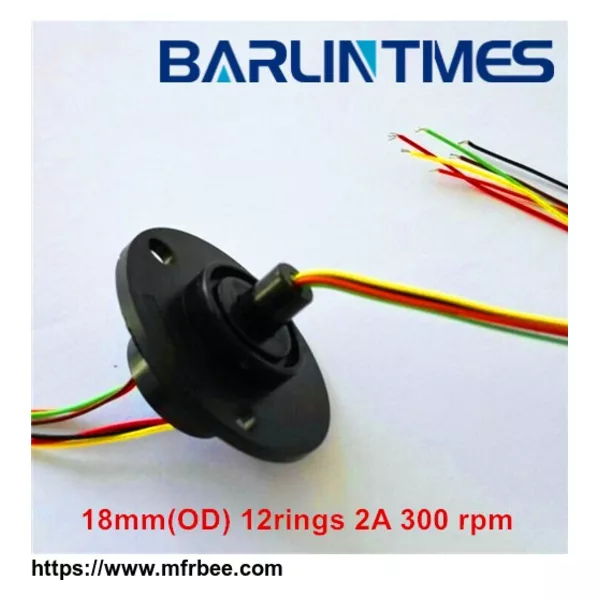

capsule slip ring- THR018-12AM-Barlin Times
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Features:
1. Gold to gold contact materials guarantee long life time
2. Low torque, low electrical noise and smooth rotation
3. Small compact construction
4. Compatible with data bus protocols
5. Continuous transmission of signal and/or data under 360 degree unrestrained rotation
Option:
1. Circuits
2. Current & Voltage
3. Work speed
4. Housing materials and color
5. Protection degree
6. Lead wire exit direction
7. Connector type
8. Signal and power transmission single or together
Application:
1. CCTV
2. Rotary table, exhibition/display equipment
3. Robotics
4. Medical equipment
5. Wind turbine generator
6. Industry process equipment
THR018-12AM
| Specification | |
| Circuits | 12 circuits |
| Work Speed | 0-300RPM |
| Work Temperature | -20℃-+60℃ |
| Work Humidity | 60%RH or higher |
| Voltage Rating | 240VAC/DC |
| Current Rating | 1A or higher |
| Dielectric Strength | 500VAC@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@500VDC |
| Electrical Noise | 1mΩ Min |
| Contact Materials | Gold to gold |
| Lead Wire Size | AWG30 Teflon® UL |
| Lead Wire Length | Standard 250mm |
| Housing Materials | Engineering plastic |
| Torque | ≤0.15 gm ( for reference） |
| Protection | IP54 or higher |
