Features
Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB
Microscopic Indentation—— Only high-power microscope can observe the indentation
Quick Measurement——Result in 2 seconds
Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.
Friendly Operation——Operate well after short training
Promised Warranty——2-Year warranty for main unit (Excludes Probe)
Mass Storage——Save 2000 groups measurement dataSimple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.
Specifications

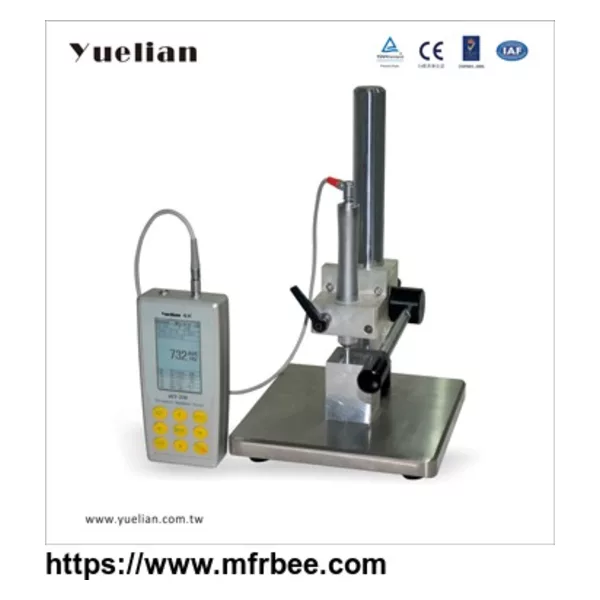

Product Name | Ultrasonic Hardness Tester |
Model | UCI-330 |
Loading Force | 2Kgf(Optional: 1Kgf, 5Kgf, 10Kgf) |
Measuring Range | HV:50~1599; HRC:20~76 HB:76-650;HRB:41-105; HRA:60-86; Mpa 255-2180 |
Measuring Accuracy | HV:±3%HV; HRC:±1.5HRC; HB:±3%HB |
Indenter | 136°Vickers Diamond Indenter |
Measuring Direction | Support 360° |
Data Storage | To save 2000-groups of measuring data and 20-groups of calibration data |
Hardness Scale | HV、HB、HRC,HRA,HRB,MPa |
Data display | Loading force,Testing-times, Testing result, Average, Maximum、Minimum、Deviation and Conversion scale. |
Hardness Indication | LCD display |
Operating Environment | Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
Operating Voltage | DC 4.2V |
Instrument Dimensions | 160x80x31mm |
Net Weight | Approximate 500g(Without probe |
