Introduction

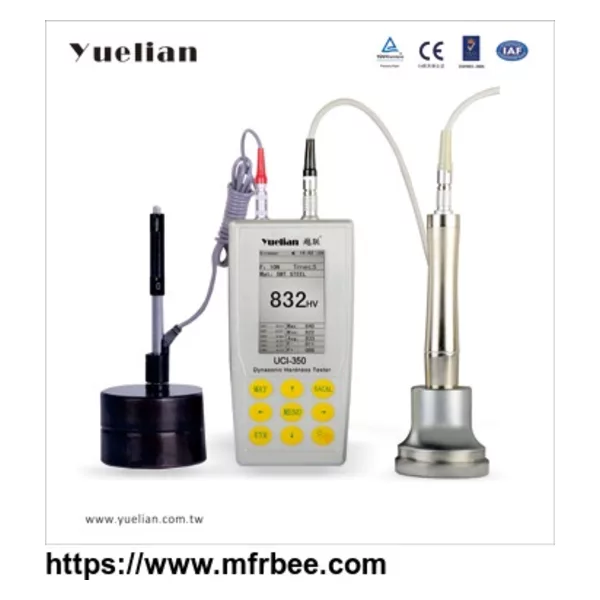

UCI-350 is a combined portable hardness tester which integrated the ultrasonic hardness testing method and dynamic Leeb hardness testing resolution in one instrument.
UCI-350 is updated product based on ultrasonic hardness tester UCI-330, so it supports all of static ultrasonic measuring probes and Leeb dynamic impact devices together.
Specifications
Product Name | ultrasonic Hardness Tester |
Model | UCI-350 |
Loading Force | 2Kgf(Optional: 1Kgf, 5Kgf, 10Kgf) |
Impact Device | D (Optional: DC/D+15/DL/G/C/E) |
Measuring Range | HV:50~1599; HRC:20~76 HB:76-650;HRB:41-105; HRA:60-86; Mpa 255-2180 HLD 170-960 |
Measuring Accuracy | HV:±3%HV; HRC:±1.5HRC; HB:±3%HB:HL:±3%HL |
Indenter | 136°Vickers Diamond Indenter |
Measuring Direction | Support 360° |
Data Storage | To save 2000-groups of measuring data and 20-groups of calibration data |
Hardness Scale | HV、HB、HRC,HRA,HRB,MPa |
Data display | Loading force,Testing-times, Testing result, Average, Maximum、Minimum、Deviation and Conversion scale. |
Hardness Indication | LCD display |
Operating Environment | Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
Operating Voltage | DC 4.2V |
Instrument Dimensions | 160x80x31mm |
Net Weight | Approximate 500g(Without probe) |
