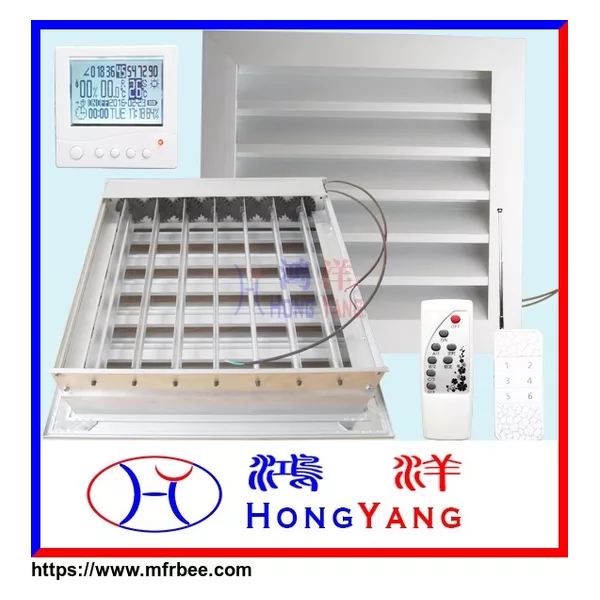

Telecommunication Cell Sites Automatic Temperature Control Air Vent

Sichuan Hongyang HVAC Equipment Co., Ltd.

Structural parts:

1- The material is aluminum. The air vent is power coated and the air damper is oxidized.

2- It is very thin, the motorized damper part is 43mm thickness (Not include the air vent part)

3- Air vent: Can be air grille, square diffuser, air louver, etc.

4- Size: Any size is available.

5- Blade: It is double-layer hollow blade, very strong and firm. And has the function of thermal insulation and sound insulation.

6- Sealing strip: Add sealing strip on blade, it is very airtight.

Function for Model: HY-KYB-H and HY-KYB-C

1- Infrared cannot control through walls and remote-controlled distance is about 6m.

2- Through walls can control through walls and remote-controlled distance is about 30m ~ 50m (Depend on how many walls between the remote control and the motorized air vent.)

3- 6 degree angle to remote control air volume (0°，18°，36°，54°，72°，90°)

4- There has the LED display which can show Temperature, Humidity and Angle.

5- Power: AC220V, AC110V, DC24, DC12V, DC5V are available

6- The working way of blade: Can be opposite or parallel to adjust.

Opposite type: It can adjust air volume well.

Parallel type: It can adjust the direction of air.

About the function for Model HY-KYB-W and other model, please contact us to get more information.

Model HY-KYB-W: It has smart wireless remote thermostat

Model HY-KYB-Y: It is WIFI type and can control through computer.

Model HY-KYB-YW: It is WIFI type with WIFI thermostat to control.

Our smart wireless remote control motorized air vent has theUsage Pattern:

1 pc controller can control 1 pc vent

1 pc controller can control N pc vent

N pc controller can control 1 pc vent

N pc controller can control N pc vent
