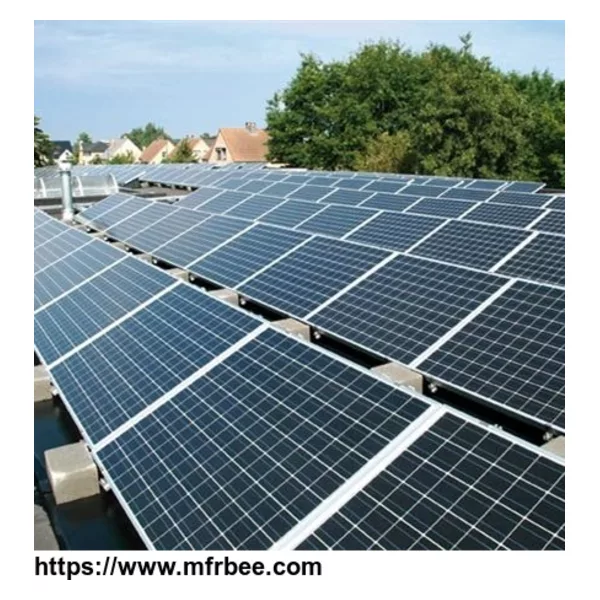

270w mono solar panel

SWM270M156 Specification

ELECTRICAL DATA @ STC

Peak Power Watts Pmax(WP):270

Power Output Tolerance Pmax(%):+3

Maximum Power Voltage Vmp(V):31.4

Maximum Power Current IMPP(A):8.6

Open Circuit Voltage Voc(V):38.4

Short Circuit Current Isc(A)；9.28

Module Efficiencyηm(%)：16.6

Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/㎡。Cell Temperature 25℃)

ELECTRICAL DATA @NOCT

Maximum Power Pmax(Wp): 210

Maximum Power Voltage Voc(V):29.3

Maximum Power Current Impp(A):6.85

Open Circuit Voltage Voc(V):35.6

Short Circuit Current Isc(A):7.45

NOCT: Irradiance at 800W/㎡，Ambient Temperature 20℃，Wind Speed 1m/s

MECHNICAL DATA

Solar Cells: Mono-crystalline 156*156mm(6 in)

Cell Orientation: 60 cells(6*10)

Module 1640*992*35mm(64057*39.06*1.38 in)

Dimensions

Weight: 18.5kg(40.79 Ib)

Glass: High transparency solar glass 3.2mm(0.13 in)

Frame: Anodized aluminium alloy

J-Box: IP 65 rated

Cables: Photovoltaic technology cable 4.0mm²(0.0062 in²)

Connector: Original MC4 PLUS

TEMPERATURE RATINGS

Nominal Operating Cell Temperature(NOCT): 45℃（±2℃）

Temperature Coefficient of Pmax: -0.43%/℃

Temperature Coefficient of Voc: -0.32%/℃

Temperature Coefficient of Isc: 0.047%/℃

MAXIMUM RATINGS

Operational Temperature: -40℃~+85℃ 10 Year Product

Maximum System Voltage: 1500V DC(IEC)/ Workmanship Warranty

1000V DC(UL) 25 Year Linear Power

Max Series Fuse Rating: 15A Warranty
