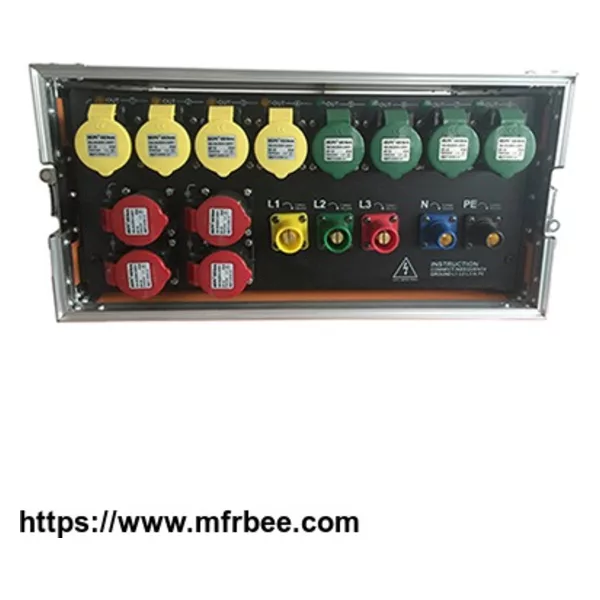

5U 12channel power distribution
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- flight case
- Delivery
- 15 Days
Specifications
Description
KoinStage customized Three-phase five
wire12channelsXXX.
Equipment housed in a plywood flight case enclosure,with recessed Socket
and
Switchgear panels for mechanical protection.24 channels has separately by12 pcs IP44 16A 3pin socket
, it can protect the power case very good.200Acamlock input, there
are
yellow/green/red/blue/black color.Equipment has a main switch and separate switch,protect overload and short circuit.
This type ofXXX Applicable to event lighting Audio/Video and Led wall applications.
Specification
| Flight Case | 5U,fireproofing,quakeproof |
| Input | 200A camlock,3 phase 5wire(5 colors),AC380Vinput AC220Voutput |
| Output | 12 channels16A 3pin socket |
| Breaker | main breaker, air switch (Delixi) |
| Meter | ampere and voltage meter |
| Wire | copper busbar main wire, inflaming retarding,terminal fixed with Screw glue |
| Plug | with200A camlock plug,16A 3pin plugs |
| Working Temperature | 0℃-45℃ |
| relative humidity | +40% - +80% |
| Atmospheric pressure | 0.8-1.6 |
| Working environment | well-ventilated, non smoke dust |
| Weight | 15Kg |
