42channel power distribution
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- flight case
- Delivery
- 15 Days
Specifications
Description

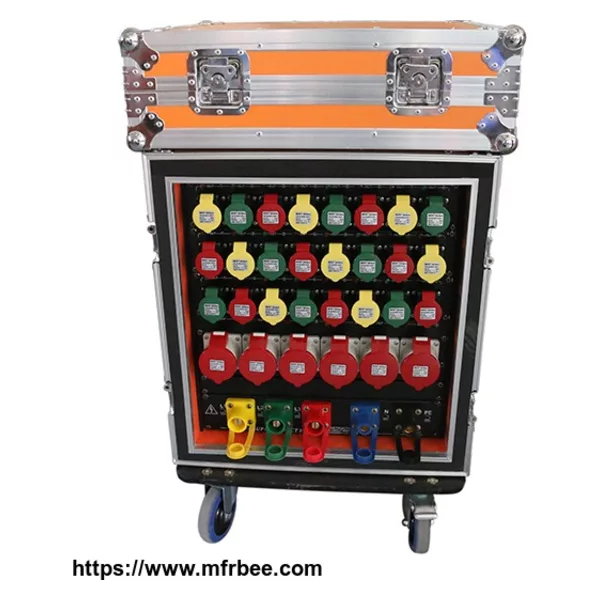

KoinStage customized Three-phase five wire42channelspower
distro.
Equipment housed in a plywood flight case enclosure,with recessed Socket and
Switchgear panels for mechanical
protection.48 channels has separately by24 pcs 16A 3pin socket ,6pcs 32A 5pin socket it can protect the
power case very good.400Acamlock input, there are
yellow/green/red/blue/black color.Equipment has a
main switch and separate switch,protect overload and short circuit.
This type of 42channel power distro Applicable to event lighting
Audio/Video and Led wall applications.
Specification
| Flight Case | 13U,5inch wheel,fireproofing,quakeproof,LED lighting at the top inside |
| Input | 400A camlock,3 phase 5wire(5 colors),AC380Vinput AC220Voutput |
| Output | 42 channels16A 3pin socket32A 5pin socket |
| Breaker | main breaker, air switch (Delixi) |
| Meter | ampere and voltage meter |
| Wire | copper busbar main wire, inflaming retarding,terminal fixed with Screw glue |
| Plug | with 400A camlock plug,16A 3pin plugs 32A 5pin plugs |
| Working Temperature | 0℃-45℃ |
| relative humidity | +40% - +80% |
| Atmospheric pressure | 0.8-1.6 |
| Working environment | well-ventilated, non smoke dust |
| Weight | 85Kg |
