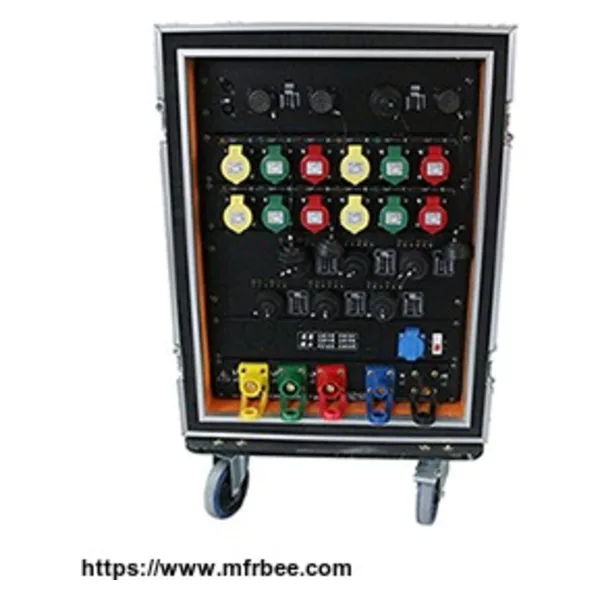

48channel power distribution
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description
KoinStage customized Three-phase five
wire48channelsXXX.
Equipment housed in a plywood flight case enclosure,with recessed Socket
and
Switchgear panels for mechanical protection.48 channels has separately by12 pcs 16A 3pin socket
,6pcs 19pin socapex it can protect the power case very good.400Acamlock input, there
are
yellow/green/red/blue/black color.Equipment has a main switch and separate switch,protect overload and short circuit.
This type ofXXX Applicable to event lighting Audio/Video and Led wall applications.
Specification
| Flight Case | 13U,5inch wheel,fireproofing,quakeproof,LED lighting at the top inside |
| Input | 400A camlock,3 phase 5wire(5 colors),AC380Vinput AC220Voutput |
| Output | 48 channels16A 3pin socket 19pin socapex |
| Breaker | main breaker, air switch (Delixi) |
| Meter | ampere and voltage meter |
| Wire | copper busbar main wire, inflaming retarding,terminal fixed with Screw glue |
| Plug | with 400A camlock plug,16A 3pin plugs 19pin socapex |
| Working Temperature | 0℃-45℃ |
| relative humidity | +40% - +80% |
| Atmospheric pressure | 0.8-1.6 |
| Working environment | well-ventilated, non smoke dust |
| Weight | 80Kg |
