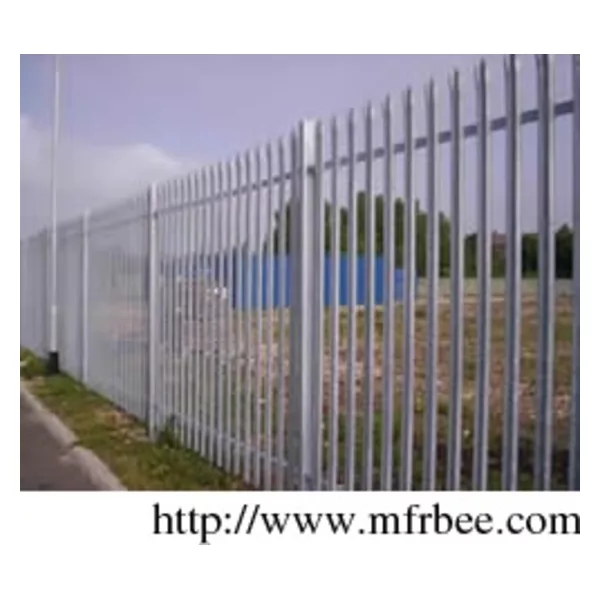

Galvanized palisade fencing is perfect of factory protection.
Palisade fencing, as effective security fencing, is the widest used type in the UK. The forbidding appearance, inherent strength and high damage resistance make the palisade fencing one of the best choices of premise protection.
Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foot-hold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.
Most of all, the palisade fence can be installed with flexibility to follow the profile of uneven terrains and offers a professional feel to your areas. So the fences are always close to the ground, no oversized gaps that may cause security issues anymore!
Palisade fences, sold in kit form, are composed of palisade pales, palisade rails, palisade post and fence fittings including fish plates, post clamps, bolts and nuts as shown in the pictures:
Main components of palisade fencing
Components | Types | Quantity per panel |
---|---|---|
Pale | W section, D section or angle pales | 17 |
Post | RSJ post or square post | 1 |
Rails | Rolled steel angle | 2 or 3 according to fence height |
Fitting | Straight fish plates or post clamps | 2 |
Bolts and nuts | 38 |
Palisade pales are available in D section, W section and angle steel types. All the pales are bolts to two horizontal palisade rails as standards. Once the fence height is over 3 meters, one more palisade rail is needed to maintain the integrity for high security.
Two types of assembly methods:
Our company can provide two types of palisade fence posts including RSJ post and square post. Generally, different post corresponds to different assembly methods. (See below pictures)
Anti-rust surface treatments:
All the products are hot dipped galvanized complying with BS EN ISO 1461: 1999. To fit your scheme, it also can be PVC coated with various colors for higher rust resistance.
Customizable palisade fencing:
Custom palisade fencing is also available. All your customized palisade fences will be inspected by our quality control departments to ensure the products are correct to your desired specification. After testing, the products are hot dipped galvanized and PVC coated as your requirements. Then the final test will be carried out by our experienced engineers.
Details:
Typical specifications
Components | Domestic palisade fencing | Commercial palisade fencing | Industries palisade fencing | |
---|---|---|---|---|
Pales | 42 × 2mm | 42 × 1.6mm | 50 × 2mm / 2.5mm or angle steel 40 × 40 ×2.3mm | 62 × 2.5mm / 3.0mm or angle steel 40 × 40 ×2.3mm |
Horizontal rails | 40 × 40 × 2.5mm | 40 × 40 × 2mm | 40 × 40 × 2.5mm / 3.0mm | 50 × 50 × 3.0mm / 5.0mm |
Square post | 76 × 76 × 1.6mm | 50 × 50 × 1.6mm or 76 × 76 × 1.6mm | 76 × 76 × 1.6mm | 76 × 76 × 1.6mm |
Post clamps | 29 × 3mm | 29 × 3mm | 29 × 3mm | 45 × 3mm |
Bolts and nuts | M6 ×No.34 for pale fixing | M6 ×No.34 for pale fixing | M8 ×No.38 | M8 ×No.34 for pale fixing |
M8 × No.4 for rail fixing | M8 ×No.4 for rail fixing | M12 ×No.4 for rail fixing |
