Palisade Fence Gates, Posts & Fittings

Packaging
N/A
Delivery
15 Days

Palisade Pales - The Necessary Components of Palisade Fencing

Palisade pales, the main components of palisade fencing, can be sold separately for repairing a damaged fence and cladding apalisade gates. Taking full advantages of forbidding appearance, the pales deter would be intruders and protect your house, office or factory, etc.

Pale Sections

Typically palisade pales are supplied with three types of vertical pale profile: angle iron, D section and W section style, which are engineered with inherent strength and high resistance to attempts of pry, impact, bending, dismantle installation and dislocation.

The intersection of D section pales

D section pales

The intersection of W section pales

W section pales

The intersection of angle steel pale

Angle steel pales

D section pales, working with long bolts, are designed for boundary delineation requiring low to medium security and damage resistance.

W section pales, with higher inherent strength and better vandal resistance, are the most used type to provide effective high security and extra protection. Fastened by short bolts, the W type palisade pales are flush against the horizon rails without flexibility.

Angle steel pales, bolted or welded to horizon fence rails, are suitable for general purpose applications, such as residential estates protection.

Pale Heads

It also available in a choice of pale heads for W or D section pales and angle iron pales as shown in the pictures:

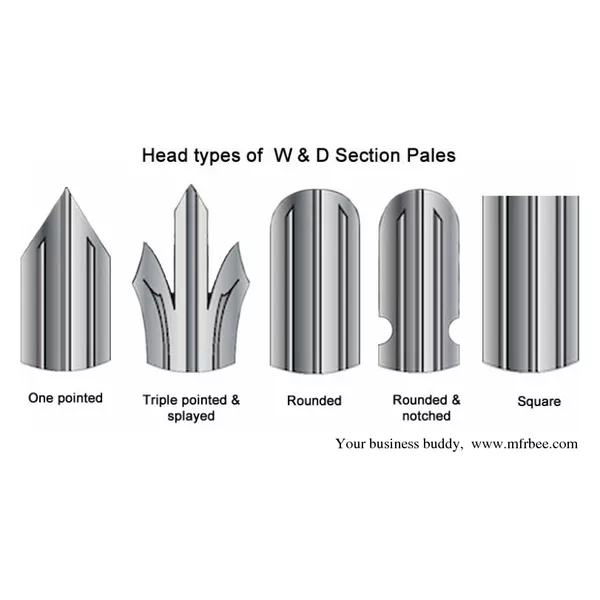

Five head types of W or D section pales include one pointed, triple pointed & splayed, rounded, round & notched and square tops
Four head types of angle iron pales include one pointed, double pointed, triples pointed and triple pointed & splayed
Added four points for higher security are suitable for all types of palisade fence pales.

Normally, the palisade pales with triple and splayed points come with the maximum security. However, those palisade pales with round & notched heads are ideal for areas where the intimidating appearances are not appropriate such as schools.

Details:

  • High quality material: low carbon steel, stainless steel, hot rolled or cold rolled steel, etc.
  • Standard: British Standard 1722 part 12 or others.
  • Anti-rust finish: hot dipped galvanized complying with BS EN ISO 1461:1999, optional PVC coating in red, blue, green, white, black or other RAL colors as your request.
  • Full range of height from 1.2m to 3.6m. Greater heights are available on request.
  • Pale thickness: from 2mm to 5mm as your request
  • Angle steel sizes: 25mm × 25mm, 30mm × 30mm, 40mm × 40mm or others.
  • W & D section pales width: 42mm, 50mm, 65mm
  • Tailored sized are also available as your request.

Typically specification:

Pale height D section pale thickness W section pale thickness Angle steel pale sizes
1.2m 2.5mm 2mm 40 × 40 × 5mm
1.5m 2.5mm 2mm 40 × 40 × 5mm
1.8m 2.5mm 2mm 40 × 40 × 5mm
2m 3mm 2mm 40 × 40 × 5mm
2.1m 3mm 2mm 40 × 40 × 5mm
2.4m 3mm or 3.5mm 2.5mm 40 × 40 × 5mm
3m 3.0mm or3.5mm 2.5mm -
3.6m 3.5mm or 4.0mm 3mm -
