Palisade Gates - Effective Solutions to Access Control

Palisade gates, matching with palisade fencing, are designed for securing accesses to your promises and properties. Manufactured from heavy duty steel, the palisade gates we supplied are durable and enable to withstand the harshest damages.

Supplied as standard, all the palisade gates are hot dipped galvanized with the option of PVC coating. Owing to these surface treatments, palisade gates feature excellent rust and corrosion resistance properties. Therefore, it owns perfect performance even in extremely atrocious environments.

As a specific designer and manufacturer, we supply two types of palisade gates: palisade swing gate and palisade sliding gate as follow:

Palisade Swing Gates

Palisade swing gate works through the hinges with bearing to make sure a smooth movement. It is available in heights of 1.2m to 3.0m with single leaf or double leaves as shown in the following pictures:

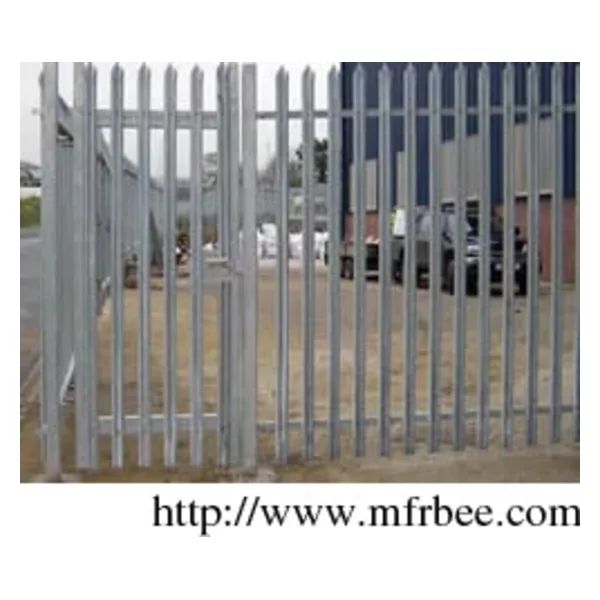

Pedestrian gate with single leaf

Pedestrian gate - single leaf

• Height: 1.2m, 1.8m, 2.0m, 2.4m or 3.0m
• Length: 1m, 1.2m or 1.5m
• Gate leaf: one gate leaf
• Palisade pales: W section, D section or angle pales.
• Gate post: 2 RSJ posts or square posts
• Latch: one heavy duty slide latch
• Horizontal palisade rails: 2 angle steel
• Fittings: 2 hinges, some bots and nuts

Vehicle gate with double leaves

Vehicle gate - double leaves

• Height: 1.2m, 1.8m, 2.0m, 2.4m or 3.0m
• Length: 2m, 3m, 4m, 5m or 6m
• Gate leaf: two gate leaves
• Palisade pales: W section, D section or angle pales.
• Gate post: 2 heavy duty square post or RSJ post
• Latch: 1 heavy duty slide latch
• Horizontal palisade rails: 2 angle steel
• Fittings: 4 hinges, and correct numbers of bots and nuts

Palisade Sliding Gates:

Palisade sliding gates, working with palisade fencing, are the widest used type for securing commercial and industries premises. Manufactured with high durability, the palisade sliding gate provides high vandal resistance and high security.

Compared with palisade swing gates, it slides neatly behind the neighboring palisade fencing with minimum opening clearance. Meanwhile, it is more suitable for heavy duty application.

Palisade sliding gate

Palisade sliding gate

• Height: 1.2m, 1.8m, 2.0m, 2.4m or 3.0m
• Length: 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m, 13m,
  14m, 15m or other widths as your request.
• Leaf: one gate leaf
• Palisade pales: W, D section or angle pales
• Wheel: 2 gate wheel with a diameter of 100mm
• Wheel run track: 10mm to 15mm protruding from the
  ground surface
• End post: 120mm × 120mm
• Center post: 100mm × 100mm
• Fitting: post clamps, bolts and nuts

Tips：

• The given gate lengths are the open sizes, which means the actual length of the fence gate is bigger than the given data. For example, the length of a vehicle gate is 4m; the actual overall length is more than 4m when taking the width of fence post into consideration.
• Bespoke products are also available. For more information about customization, please be free to email us at.
