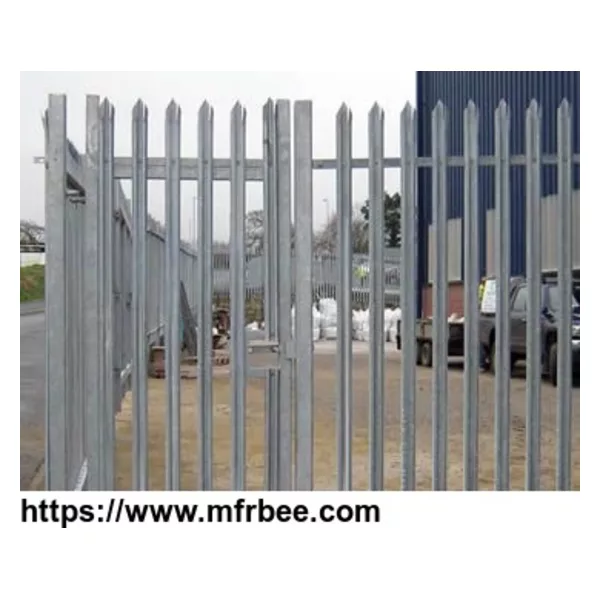

Steel palisade gate, matched with the palisade fencing
Palisade fencing gate description:
Fence height | Frame sizes for palisade gate leaf widths (mm) | |||||||
---|---|---|---|---|---|---|---|---|
≤1.5m | 1.5 - 1.75m | 1.75-2.5m | 2.5-3.5m | 3.5-3.75m | 3.75-4.75m | 4.75-5.5m | 5.5-6.5m | |
1.5m | 60 × 40 × 4.0 | 60 × 40 × 4.0 | 80 × 40 × 4.0 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 100 × 60 × 5.0 |
1.8m | 60 × 40 × 4.0 | 60 × 40 × 4.0 | 80 × 40 × 4.0 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 100 × 60 × 5.0 |
2.1m | 60 × 40 × 4.0 | 60 × 40 × 4.0 | 80 × 40 × 4.0 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 100 × 60 × 5.0 | 100 × 60 × 5.0 |
2.4m | 60 × 40 × 4.0 | 60 × 40 × 4.0 | 80 × 40 × 4.0 | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 100 × 60 × 5.0 | 100 × 60 × 5.0 | 100 × 60 × 5.0 |
3.0m | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 100 × 60 × 5.0 | 100 × 60 × 5.0 | 100 × 60 × 5.0 | 100 × 60 × 5.0 | 120 × 120 × 5.0 | 120 × 120 × 5.0 |
3.6m | 90 × 50 × 3.6 | 90 × 50 × 3.6 | 100 × 60 × 5.0 | 100 × 60 × 5.0 | 100 × 60 × 5.0 | 100 × 60 × 5.0 | 120 × 120 × 5.0 | 120 × 120 × 5.0 |
Fence height | Embedded length (mm) | RSJ, UB OR UC steel posts for palisade gate leaf widths (mm) | |||||||
---|---|---|---|---|---|---|---|---|---|
≤1.5m | 1.5-1.75m | 1.75-2.5m | 2.5-3.5m | 3.5-3.75m | 3.75-4.75m | 4.75-5.5m | 5.5-6.5m | ||
1.5m | 525 | 178 × 102 × 19 | 178 × 102 × 19 | 152 × 152 × 37 | 152 × 152 × 37 | 203 × 203 × 60 | 203 × 203 × 60 | 203 × 203 × 60 | 203 × 203 × 86 |
1.8m | 525 | 178 × 102 × 19 | 178 × 102 × 19 | 152 × 152 × 37 | 152 × 152 × 37 | 203 × 203 × 60 | 203 × 203 × 60 | 203 × 203 × 60 | 203 × 203 × 86 |
2.1m | 625 | 178 × 102 × 19 | 178 × 102 × 19 | 152 × 152 × 37 | 203 × 203 × 60 | 203 × 203 × 60 | 203 × 203 × 86 | 203 × 203 × 86 | 254 × 254 × 107 |
2.4m | 725 | 178 × 102 × 19 | 152 × 152 × 37 | 152 × 152 × 37 | 203 × 203 × 60 | 203 × 203 × 60 | 203 × 203 × 86 | 254 × 254 × 89 | 254 × 254 × 107 |
3.0m | 925 | 152 × 152 × 37 | 152 × 152 × 37 | 203 × 203 × 60 | 203 × 203 × 60 | 254 × 254 × 89 | 203 × 203 × 86 | 254 × 254 × 89 | 305 × 305 × 97 |
3.6m | 1125 | 152 × 152 × 37 | 152 × 152 × 37 | 203 × 203 × 60 | 203 × 203 × 60 | 254 × 254 × 89 | 254 × 254 × 89 | 254 × 254 × 89 | 305 × 305 × 97 |
Fence height | Embedded length (mm) | RHS post sizes for palisade gate leaf widths (mm) | |||||||
---|---|---|---|---|---|---|---|---|---|
≤1.5m | 1.5-1.75m | 1.75-2.5m | 2.5-3.5m | 3.5-3.75m | 3.75-4.75m | 4.75-5.5m | 5.5-6.5m | ||
1.5m | 525 | 80 × 80 × 5.0 | 100 × 100 × 6.3 | 100 × 100 × 6.3 | 120 × 120 × 6.3 | 150 × 150 × 6.3 | 150 × 150 × 6.3 | 150 × 150 × 6.3 | 200 × 200 × 6.3 |
1.8m | 525 | 80 × 80 × 5.0 | 100 × 100 × 6.3 | 100 × 100 × 6.3 | 120 × 120 × 6.3 | 150 × 150 × 6.3 | 150 × 150 × 6.3 | 150 × 150 × 6.3 | 200 × 200 × 6.3 |
2.1m | 625 | 80 × 80 × 5.0 | 100 × 100 × 6.3 | 120 × 120 × 6.3 | 120 × 120 × 6.3 | 150 × 150 × 6.3 | 200 × 200 × 6.3 | 200 × 200 × 6.3 | 200 × 200 × 10 |
2.4m | 725 | 80 × 80 × 5.0 | 100 × 100 × 6.3 | 120 × 120 × 6.3 | 120 × 120 × 6.3 | 150 × 150 × 6.3 | 200 × 200 × 6.3 | 200 × 200 × 6.3 | 200 × 200 × 10 |
3.0m | 925 | 100 × 100 × 6.3 | 100 × 100 × 6.3 | 120 × 120 × 6.3 | 150 × 150 × 8.0 | 200 × 200 × 6.3 | 200 × 200 × 6.3 | 200 × 200 × 6.3 | 250 × 250 × 8 |
3.6m | 1125 | 100 × 100 × 6.3 | 100 × 100 × 6.3 | 120 × 120 × 6.3 | 150 × 150 × 8.0 | 200 × 200 × 6.3 | 200 × 200 × 6.3 | 200 × 200 × 6.3 | 250 × 250 × 8 |
