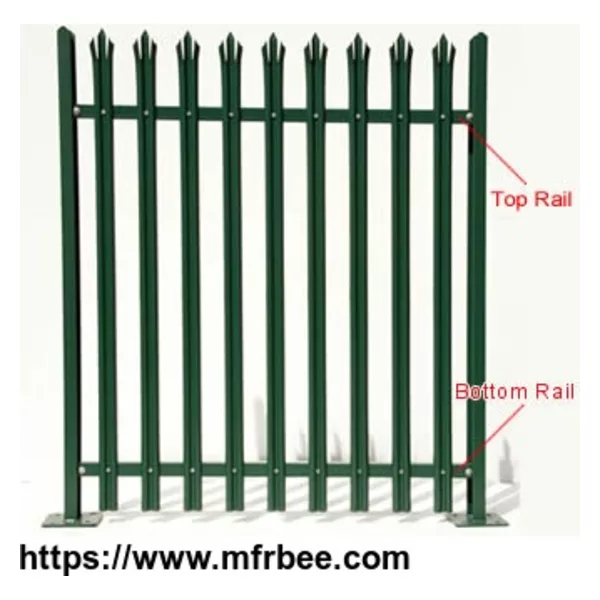

Horizontal palisade rails tightly integrate the palisade fencing together to block the threats and intruders out. Usually, the rails are made of hot-rolled steel angles and their dimensions are a little different according to the fencing heights. For a palisade fence with height up to 3.60m, if without special requirement, two horizontal rails will be ok. Besides welded palisade fencing panels, the most frequently used connecting methods for pale to rail are bolts, for post to rail is rivet and fish plate. These anti-vandal bolts and rivets prohibit any action trying to break the fence.
Palisade fencing rail description:
Palisade fencing type | Palisade fencing item | palisade fence height above ground (m) | Horizontal rails size (rolled steel angle section) (mm) |
---|---|---|---|
General palisade fencing | GP15 | 1.50 | 40 × 40 ×6 |
General palisade fencing | GP18 | 1.80 | 40 × 40 × 6 |
General palisade fencing | GP21 | 2.10 | 45 × 45 × 6 |
General palisade fencing | GP24 | 2.40 | 45 × 45 × 6 |
High security palisade fencing | SP30 | 3.0 | 50 × 50 × 6 |
High security palisade fencing | SP36 | 3.6 | 65 × 50 × 6 |
Hot Zinc Galvanised Steel Palisade provides secure border barrier for residences and various premises. Steel fencing galvanised can be coated Material:Q235 Height: 1200mm/1500mm/1800mm/2100mm/2400mm/2700mm/3000mm/3600mm Width: 2750mm per bay or as you requirement Pale type: D ...
Hot-dipped galvanized Palisade Fencing,PVC Coated,Vinyl Coated,\"D\" and \"W\" section, Triple pointed. Overview Steel palisade fencing is a type of metal fencing that is composed of vertical steel components that are linked together to form a barrier or wall. It is commonly ...
Two/Three wave guard rail roll forming machie Guard rail produciton line process go through Uncoiler →Guide device→Straightening→Hydraulic press breach device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack Guard ...
Wrought iron forged bar/picket/post/baluster, for fences, gates, and railings. Category - Forged bars Material - Low carbon steel Length - depend on each item Width - depend on each item External Diameter - depend on each item Weight - depend on each item Surface - Sand ...
Palisade fencing has been proven over the years to be the best security fence for general purpose private or commercial sites. General purpose palisade fences are produced in a choice of top styles. D pale palisade in the thickness of 3mm is considered for general purpose ...
Steel palisade fencing is one of most sought after first line of perimeter defences. Palisade fences are modular and have a good aesthetic appearance. The advantages of palisade fences over other forms of perimeter walls or fencing are that it is almost impossible to climb or ...
PVC coated palisase fencing has a strong and durable construction providing excellent protection, produced with either a \'D\' or a \'W\' profile to varying specifications. Powder Coated Palisade Heights: 1.2m, 1.5m, 1.8m, 2m, 2.1m, 2.4m and 3m heights are available. Paling ...
Palisade Security Fencing: Generally, fencing systems make use of a variety of materials, varying from steel, wire, concrete, and wood. The most popular and widely used fencing type is what is commonly known as \"Palisade Fencing\". The applications of palisade fencing may ...
The forbidding appearance and inherent strength of the pales provide an effective deterrent to would be intruders. It is available in a choice of head styles, both in the traditional \'D\' pale profile, and \'W\' section pale for added security. Palisade is offered in a range ...
