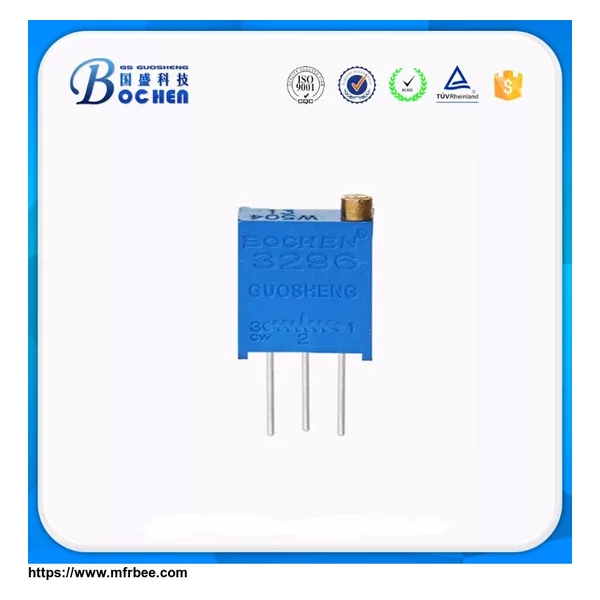

3296W 3296X 3296P BOCHEN Multiturn Square Trimpot Trimming Potentiometer

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Electrical Characteristics: Standard Resistance Range: 10Ω-2MΩ. . Resistance Tolerance: ±10% . Terminal Resistance: ≤1%R or 2 Ω. Contact Resistance Variation: ≤3%R or 3 Ω. Insulation Resistance: R1≥1GΩ. Withstand Voltage: 101.3KPa 600V 8.5KPa 360V. Effective Electrical Travel: 30±2 cycles. Envionment Characteristics: Rated Power: 70℃ 0.5w; 125℃
0W. Temperature Range: -55~℃125℃. Temperature Coefficient: ±250、±100 ppm/°C . Standard Packing: 50PCS/tube
