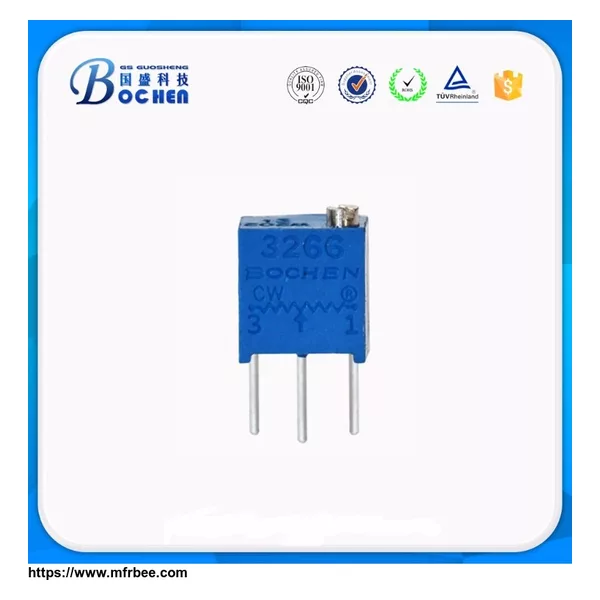

3266W 3266X Multiturn Square Trimpot Cermet Trimmer potentiometer
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
3266W 3266X Multiturn Square Trimpot Cermet Trimmer potentiometer
Electrical Characteristics: Standard Resistance Range: 10Ω-2MΩ. . Resistance Tolerance: ±10% . Terminal Resistance: ≤1%R or 2 Ω. Contact Resistance Variation: ≤3%R or 3 Ω. Insulation Resistance:
R1≥1GΩ. Withstand Voltage: 101.3KPa 600V 8.5KPa 360V. Effective Electrical Travel: 12±2 cycles. Envionment Characteristics: Rated Power: 70℃ 0.25w; 125℃
0W. Temperature Range: -55~℃125℃. Temperature Coefficient: ±250、±100 ppm/°C . Standard Packing: 50PCS/tube
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:1998
- Address:NO.29, Hegang Road, modern Industrial Port, Chengdu China
- Contact:Jack Liu
