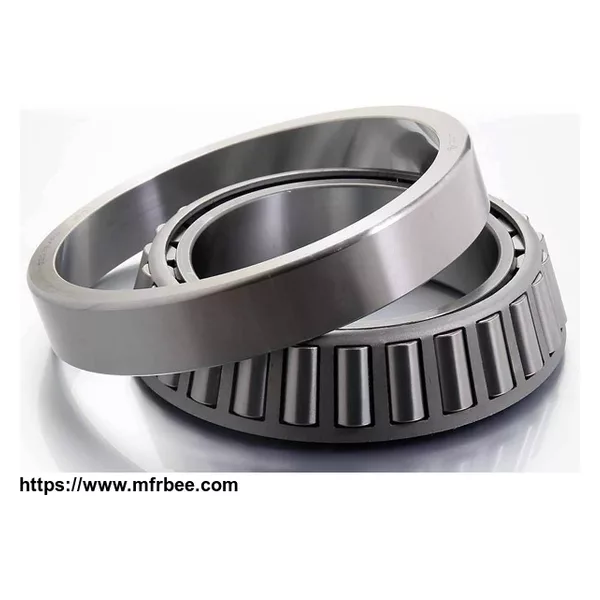

Single Row Tapered Roller Bearing 32940,
Inner Ring: 200.000mm,
Outer Ring: 280.000mm,
Width: 51.000mm,
Width of Inner Ring: 51.000mm,
Width of Outer Ring: 39.000mm,
Chamfer of Inner Ring: 3mm,
Chamfer of Outer Ring: 2.5mm,
Basic Dynamic Load Rating: 460KN,
Basic Static Load Rating: 950KN,
Limited Speed (rpm): 950(grease)/1300(oil),
Gross Weight: 9.5kg,
Single row tapered roller bearing can support a combined radial and axial load. If either a radial load or bi-directional axial load is to be carried, a pair of bearings must be used in a
"face-to-face" or "back-to-back" mounting. The axial load carrying capacity of the bearings is largely determined by the contact angle. If the contact angle is larger, then the axial load
carrying capacity is higher and vice versa. During equipment assembly, single row bearings can be set to the required clearance (endplay) or preload condition to optimize performance.
30318: 90mm x 190mm x 46.5mm
32318: 90mm x 190mm x 67.5mm
30319: 95mm x 200mm x 49.5mm
32319: 95mm x 200mm x 71.5mm
32220: 100mm x 180mm x 49mm
33220: 100mm x 180mm x 63mm
31320: 100mm x 215mm x 56.5mm
32320: 100mm x 215mm x 77.5mm
33021: 105mm x 160mm x 43mm
30321: 105mm x 225mm x 53.5mm
31321: 105mm x 225mm x 58mm
32922: 110mm x 150mm x 25mm
32022: 110mm x 170mm x 38mm
33022: 110mm x 170mm x 47mm
32222: 110mm x 200mm x 56mm
30322: 110mm x 240mm x 54.5mm
31322: 110mm x 240mm x 63mm
32322: 110mm x 240mm x 84.5mm
32024: 120mm x 180mm x 38mm
30224: 120mm x 215mm x 43.5mm
32224: 120mm x 215mm x 61.5mm
30324: 120mm x 260mm x 59.5mm
32324: 120mm x 260mm x 90.5mm
32926: 130mm x 180mm x 32mm
30226: 130mm x 230mm x 43.75mm
30326: 130mm x 280mm x 63.75mm
31326: 130mm x 280mm x 72mm
32326: 130mm x 280mm x 98.75mm
32028: 140mm x 210mm x 45mm
32028X2: 140mm x 210mm x 45.5mm
30228: 140mm x 250mm x 45.75mm
32228: 140mm x 250mm x 71.75mm
31328: 140mm x 300mm x 77mm
32030: 150mm x 225mm x 48mm
30230: 150mm x 270mm x 49mm
32230: 150mm x 270mm x 77mm
31330: 150mm x 320mm x 82mm
32932: 160mm x 220mmx 38mm
32032: 160mm x 240mm x 51mm
32232: 160mm x 290mm x 84mm
30332: 160mm x 340mm x 75mm
32934: 170mm x 230mm x 38mm
32034: 170mm x 260mm x 57mm
30234: 170mm x 310mm x 57mm
32234: 170mm x 310mm x 91mm
30334: 170mm x 360mm x 80mm
32936: 180mm x 250mm x 45mm
32036X2: 180mm x 280mm x 64.5mm
30236: 180mm x 320mm x 57mm
32236: 180mm x 320mm x 91mm
32938: 190mm x 260mm x 45mm
31038X2: 190mm x 290mm x 51mm
32038X2: 190mm x 290mm x 64.5mm
30238: 190mm x 340mm x 60mm
32238: 190mm x 340mm x 97mm
32244: 220mm x 400mm x 114mm
32948X2: 240mm x 320mm x 51.5 mm
32048X2: 240mm x 360mm x 76.5mm
32248: 240mm x 440mm x 127mm
32952X2: 260mm x 360mm x 64.5mm
32052X2: 260mm x 400mm x 87.7mm
32252: 260mm x 480mm x 137mm
30352X2: 260mm x 540mm x 114mm
32956: 280mm x 380mm x 63.5mm
32956X2: 280mm x 380mm x 64.5mm
32056X2: 280mm x 420mmx 87.7mm
32960X2: 300mm x 420mm x 76.5mm
32060X2: 300mm x 460mm x 100.7mm
32064: 320mm x 480mm x 100mm
32968: 340mm x 460mm x 76mm
32972: 360mm x 480mm x 76mm
