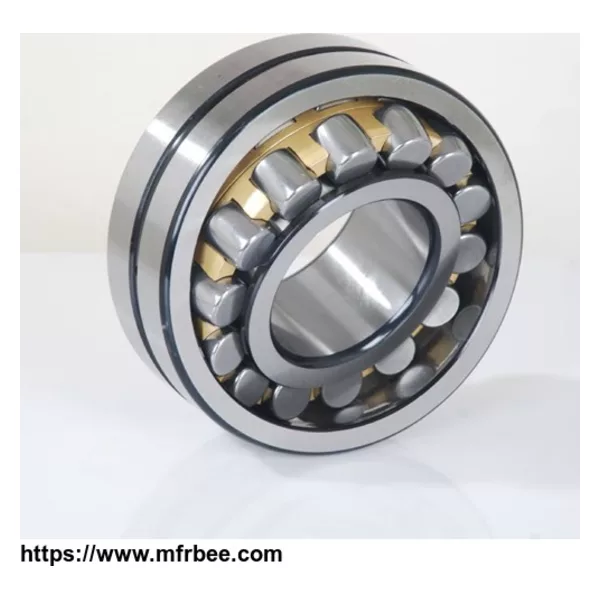

Spherical Roller Bearing 23044MBC3W33
Product Quick Detail
- FOB Price
- USD $319.00 / Piece
- Minimum Order
- 10
- Place Of Origin
- China
- Packaging
- 5pcs each carton
- Delivery
- 15 Days
Specifications
Spherical Roller Bearing 23044MBC3W33
Inner Ring: 220.000mm
Outer Ring: 340.000mm
Width: 90.000mm
Chamfer:3mm
Basic Dynamic Load Rating: 1103KN
Basic Static Load Rating: 2046KN
Limited Speed (rpm): 1188(grease)/1680(oil)
Gross Weight: 31.4kg
Brass Cage
Equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel-shaped rolling elements, spherical roller bearings can adjust center alignment to handle inclination of the axle or shaft.
Spherical roller bearings are available with cylindrical or tapered bores, and can have different features such as bronze or steel retainers and with or without oil holes. Standard sizes range from 90mm inside diameter to 1820 mm outside diameter. Spherical roller bearing standard series consist of: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100.
Inner Ring: 220.000mm
Outer Ring: 340.000mm
Width: 90.000mm
Chamfer:3mm
Basic Dynamic Load Rating: 1103KN
Basic Static Load Rating: 2046KN
Limited Speed (rpm): 1188(grease)/1680(oil)
Gross Weight: 31.4kg
Brass Cage
Equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel-shaped rolling elements, spherical roller bearings can adjust center alignment to handle inclination of the axle or shaft.
Spherical roller bearings are available with cylindrical or tapered bores, and can have different features such as bronze or steel retainers and with or without oil holes. Standard sizes range from 90mm inside diameter to 1820 mm outside diameter. Spherical roller bearing standard series consist of: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100.
- Country: China (Mainland)
- Business Type: Manufacture middle and large size spherical roller bearings, tapered roller bearings, cylindrical roller bearings, mill bearings, deep groove ball bearings, thrust ball bearings and angular contact ball bearings. Inner diameter choice above 90mm.
- Market: Americas,European Union,Oceania
- Founded Year: 1995
- Address: Industrial Park, Wa Wo Town
- Contact: Simon Yin
