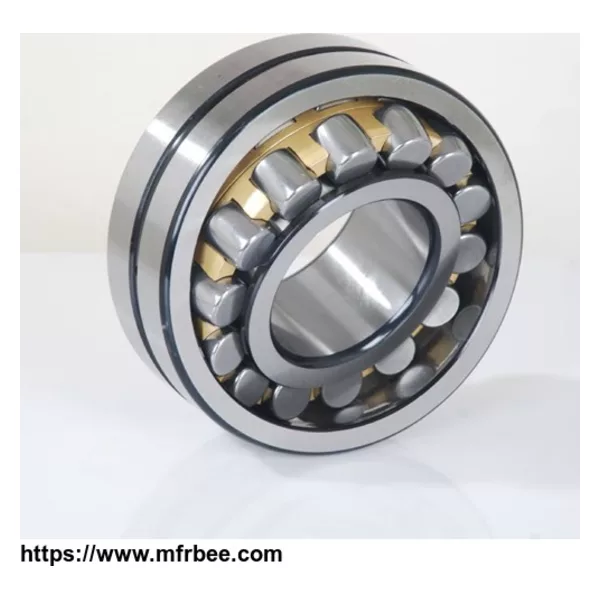

Spherical Roller Bearing 23044MBC3W33
Product Quick Detail
- FOB Price
- USD $319.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 10
- Packaging
- 5pcs each carton
- Delivery
- 15 Days
Specifications
Inner Ring: 220.000mm
Outer Ring: 340.000mm
Width: 90.000mm
Chamfer:3mm
Basic Dynamic Load Rating: 1103KN
Basic Static Load Rating: 2046KN
Limited Speed (rpm): 1188(grease)/1680(oil)
Gross Weight: 31.4kg
Brass Cage
Equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel-shaped rolling elements, spherical roller bearings can adjust center alignment to handle inclination of the axle or shaft.
Spherical roller bearings are available with cylindrical or tapered bores, and can have different features such as bronze or steel retainers and with or without oil holes. Standard sizes range from 90mm inside diameter to 1820 mm outside diameter. Spherical roller bearing standard series consist of: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100.
- Country: China (Mainland)
- Business Type: Manufacture middle and large size spherical roller bearings, tapered roller bearings, cylindrical roller bearings, mill bearings, deep groove ball bearings, thrust ball bearings and angular contact ball bearings. Inner diameter choice above 90mm.
- Market:Americas,European Union,Oceania
- Founded Year:1995
- Address:Industrial Park, Wa Wo Town
- Contact:Simon Yin
Other products from Cojinete Bearings Co., Ltd
Relate products of Spherical Roller Bearing 23044MBC3W33
Specifications of 22217 E Bearings Designations (Bearing with cylindrical bore) 22217 E Principal dimensions (mm) d 85 D 150 B 36 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 276.45 Basic load ratings (static) (C0) 315.25 Fatigue load limit (Pu) 34.5 Speed ...
Specifications of 22217 EK Bearing Designations (Bearing with tapered bore) 22217 EK Principal dimensions (mm) d 85 D 150 B 36 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 276.45 Basic load ratings (static) (C0) 315.25 Fatigue load limit (Pu) 34.5 Speed ...
Specifications of 22216 E Bearings Designations (Bearing with cylindrical bore) 22216 E Principal dimensions (mm) d 80 D 140 B 33 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 228.92 Basic load ratings (static) (C0) 261.9 Fatigue load limit (Pu) 29 Speed ...
