UA1600S SLIDING TABLE PANEL SAW
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- 12 SETS/20 GP
- Delivery
- 20 Days
Specifications
1-Main saw blade rise and fall by hand wheel

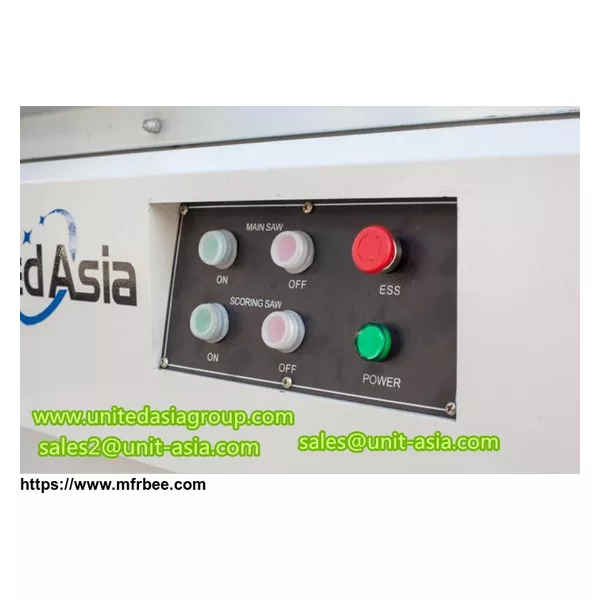

2-Power control panel right shows
3-Standard roller guide—made of high-strength extruded aluminum alloy.
4-Ball bearing style sliding table
5-Round style sliding table
6-altendorf style sliding table
We normal equipped with Round style sliding table saw followings:
Size:1600*375mm,all machines’ motor with good quality and powerful
7-ISO9001 and CE certificate
8-Good after-sale service compact size with firm structure
| Dimension of sliding table | 1600*375mm |
| Gross cut capacity | 1600mm |
| Width of cut between saw blade and ripe fence | 1250mm |
| Saw blade | 300mm (250-300) |
| Height of cut 300mm | 70mm |
| Speed of main saw blade | 6000r.p.m |
| Tiling saw blade | 45Degree |
| Main motor | 3kw(4HP) |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade diameter | 8000r/min |
| Scoring motor | 0.75kw(1HP) |
| Net weight | 550kg |
| Overall dimensions | 1600*2550*900mm |
| Loading 20GP 40HQ | 12SETS 24SETS |
PACKAGE
1.Thick PE foam inner, plastic film outside, in case of damage during transportation
2.Seaworthy wooden case as the general export package should be additional charged
DELIVERY TIME
20days after confirming order and received the deposit,detail delivery date should be decided according to
production season and order quantity.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Emerging Markets,Middle East,Oceania
- Founded Year:2014
- Address:Woodworking Industrial park,Qingdao,China
- Contact:Ann wei
