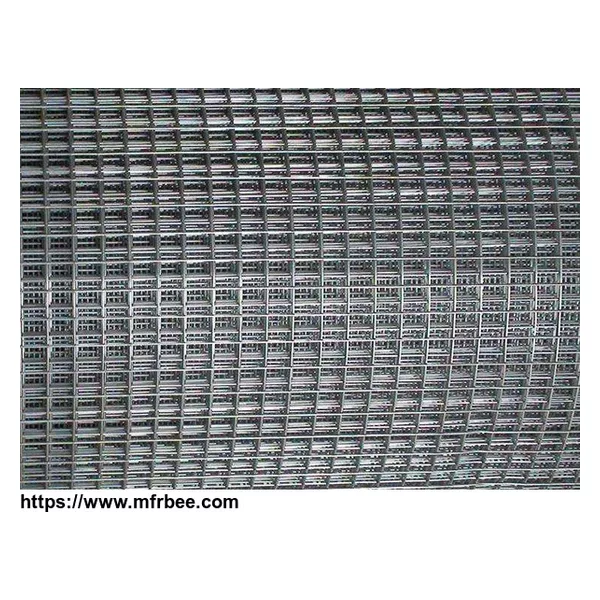

Galvanized Welded Wire Mesh
Galvanized Welded Wire Mesh | |||
Opining | Wire Diameter | ||
Inch | mm | BWG | mm |
1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
2"x1" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
Note: Special specifications can be customized. | |||
PVC Coated Welded Wire Mesh
PVC Coated Welded Mesh | ||
Opening | Wire Diameter | |
In inch | In metric unit(mm) | |
1/4"x1/4" | 6.35mx6.35mm | 21,22,23,24,24,25 |
1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
Technical Note:
1.Standard roll length:30m;width:0.5m to 2.5 2.Special sizes avaliable at request 3.Packing:in plastic in rolls .Custom packing available at reques |
