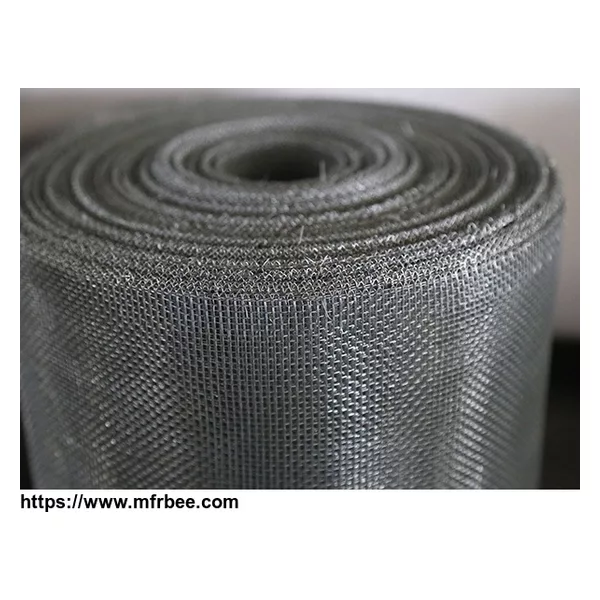

Square Wire Mesh
Name:Square wire mesh is also known as screen mesh and flat screen.
Type:Square mesh can be divided into galvanized square mesh, hot dip galvanized square mesh.
Material:Galvanized wire, stainless steel wire, copper wire and aluminum wire woven mesh, from 1 to 60.
Characteristics:The precise structure, uniform mesh, has the characteristics of good corrosion resistance and durable.
Weaving Type
plain wave: Plain weave can be woven from 1X1mesh to 635X635 mesh
twill weave: Twill weave can be woven from 20x250mesh to400X2800mesh
dutch weave: Plain Dutch weave can be woven from 10X64mesh to 80X700mesh
Application
widely used in aerospace, petroleum, chemical industry
scientific research and transportation industries
electroplating industry for pickling mesh, printing mesh
battery industry and a variety of sophisticated filtration products
Specification
Mesh | Wire Dia(mm) | Aperture(mm) |
2 | 1.60 | 11.10 |
4 | 1.20 | 5.15 |
5 | 1.00 | 4.08 |
6 | 0.80 | 3.43 |
8 | 0.60 | 2.57 |
10 | 0.55 | 1.99 |
12 | 0.50 | 1.61 |
14 | 0.45 | 1.36 |
16 | 0.40 | 1.19 |
18 | 0.35 | 1.06 |
20 | 0.30 | 0.97 |
30 | 0.25 | 0.59 |
40 | 0.20 | 0.44 |
50 | 0.16 | 0.35 |
60 | 0.15 | 0.27 |
Packing and delivery
Inside with a water-proof paper,outside with plastic film and wooden boxes,then putting in wooden pallets.
