C Channel Roll Forming Machine

C Channel roll former top hat purlin forming machine supplier design equipment for production roof and ceiling using hat profiles.

In addition to C-type light steel, cap steel has been widely used in the construction of commercial projects in the United States. The standard design is 610mm pitch truss arrangement, the upper chord is the roof, the lower chord is the ceiling.

C profile roll forming machine production line process

Uncoiler straightener 2 in 1 → Guide device → roll forming machine →shear device (including knife)→ finished product rack

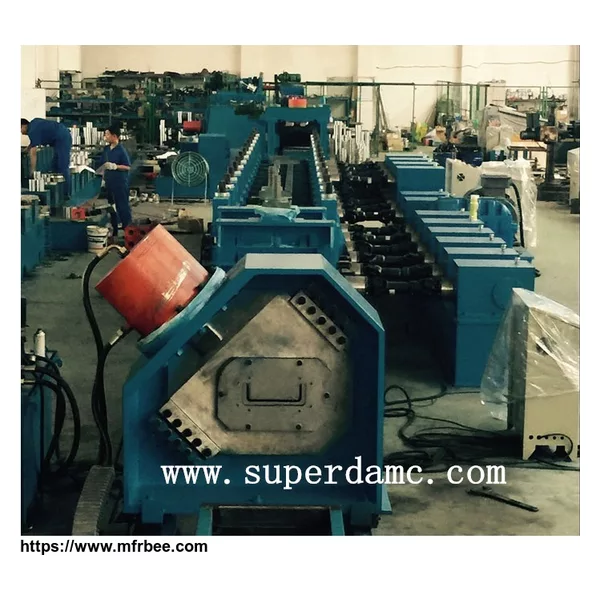

C channel roll forming machine

5.1 Forming Roller：24 stations，and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。

5.3 Rolling speeding: 8-12 m/min。

5.4 Roller material：#45，overall quenching, hardness HRC55-60 ℃.
5.5 Motor power：7.5KW。
5.6 Main Roller ：￠65mm，45 #。
5.7 Equipment base: 400# H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
