Split window film meter LS110H

FOB Price: USD $320.00 / Piece
Place Of Origin: China(Mainland)

Minimum Order: 1

Packaging: 1 pc each box

Delivery: 10 Days

UV peak wavelength 365nm

Visible light peak wavelength 380-760nm

IR peak wavelength 1400nm

Resolution When the measured value is the resolution is 0.1%;

for other ranges, the resolution is 1%

Measurement accuracy better than ± 2% (colorless and uniform transparent materials)

Test sample size bigger than 40mm × 40mm

Weight 630 g

Dimension 130mm x 70mm x 84mm(L*W*H)

Power supply Built-in lithium rechargeable battery

1. The automotive window tint meter uses a parallel light path design, which can test large thickness glass and ensure the accuracy of test data.

2．The laser alignment function can ensure the precise alignment of the main and auxiliary machines during the measurement process. The accuracy of the instrument can be ensured.

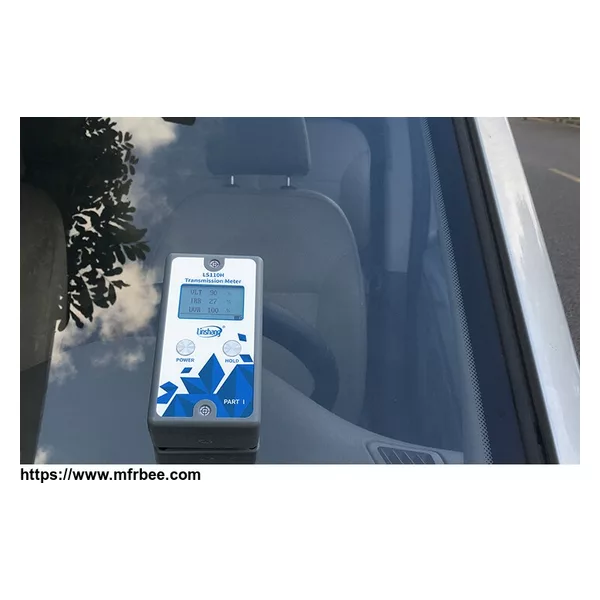

3. The tint meter adopts a split design, with super strong magnetic force between the main machine and the auxiliary machine. It is convenient for on-site testing of the optical transmission of automobile front glass, building glass and large-sized materials.

4. The LS110H split transmission meter can test the transmittance, ultraviolet and infrared rejection rate at the same time. With data lock function, the data remain on the interface after taking away the materials.

5. Built-in rechargeable lithium battery, there is no need to replace the battery, you can use one to two USB charging cable to charge the main and auxiliary machines at the same time.
