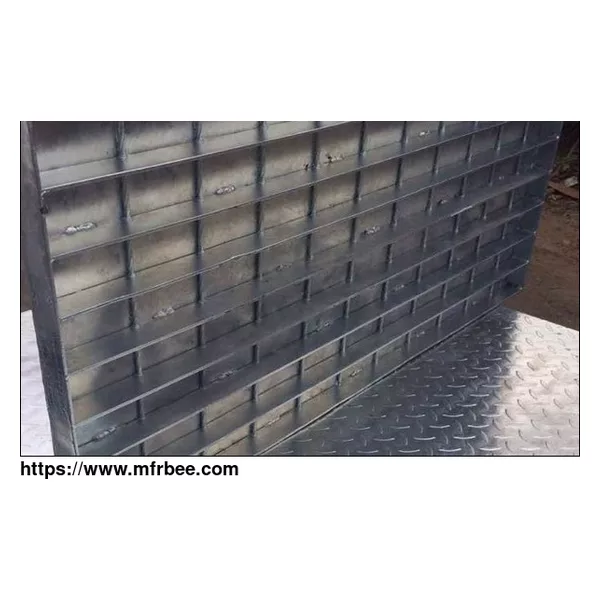

Compound steel grating is a product made of steel grating with certain crossing style and checkered plate
Checkered plate is used as surface tread plates with a thickness of 4mm, 5mm or 6mm according to customers’ requirements.
Compound steel grating will generate buckling deformation due to thermal stress after hot dip galvanizing, and larger steel grating has difficult levelling due to the fact the panels are two layers of metal sheets combined firmly together.
Order of Compound Steel Grating
Item | Type | specification (mm) | Note | |
Length | Width | |||
A1 | JFH3(JG253/30/100) | 900 | 993 | Hot-dip Galvanized |
A2 | JFH5(JG323/60/100U) | 800 | 993 | Mill |
Samples Illustration:
