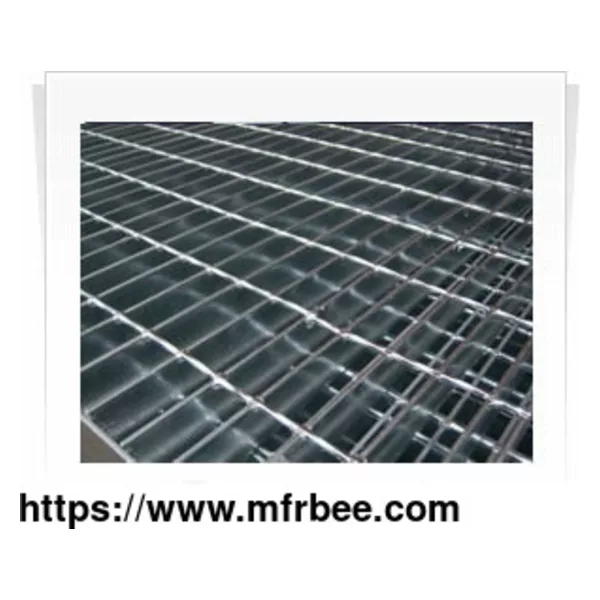

Plug Steel Grating

Plug grating is a lightweight and durable flat steel structure widely used as building material in civilian and commercial buildings, theaters, metro, suburban railway and construction projects of various public works areas and facilities. The grating is made with carbon steel or stainless steel bars going through the opening (hole), plug, welding and finishing processes, galvanized or stainless steel natural color.

Basic Information to Know about Our Plug Bar Grating:
Grating length
The bearing grating length is the external grating dimension measured in the direction of the bearing rods (this applies even in the case that the grating length is shorter than the width thereof).
Grating width
The non-bearing grating width is the external grating dimension measured in the direction of the filling rods.
Bearing rods
The bearing rods are parallel grating chords supported on both ends and used to transmit the forces induced by the grating load.
Filling rods
The filling rods are chords sized as a rule to 10 x 2 mm maintaining the vertical position and stability of the bearing rods.
Mesh size
The mesh size is the axial distance between two adjacent bearing rods and two adjacent filling ones.
Border band
The border band is a steel band used as a border and reinforcement of the peripheral grating area; as a rule, the cross-sectional area of the border band is identical with that of the bearing rod of the grating.
Unidirectional Anti-Slip Arrangement
Indentations cut out in filling rods creating an effective anti-slip grating arrangement.
Bearing structure
Supporting structure, as a rule steel or concrete construction, where gratings are anchored.
Cut outs
Rectangular, oblique and/or bow-shaped apertures in grating structures cut out in accordance with the Customer drawing or sketch.
Step sides
Staircase step sides made from flat bars and used to screw the step onto the staircase bearing structure (the string boards).
Feature: Plug steel grating has lightweight, high strength, corrosion-resistance, it is strong, durable, maintenance-free, beautiful and a great choice for use in both residential and industrial applications.

Application:
Plug type grating can be used for ceiling, indoor and outdoor decoration, platform aisle, ventilation window, advertising plaque,a variety of cover,industrial platforms,ladder treads,passage floors, railway bridge sideways, high-altitude tower platforms, drainage ditch covers, and etc.
