Louvre Grating

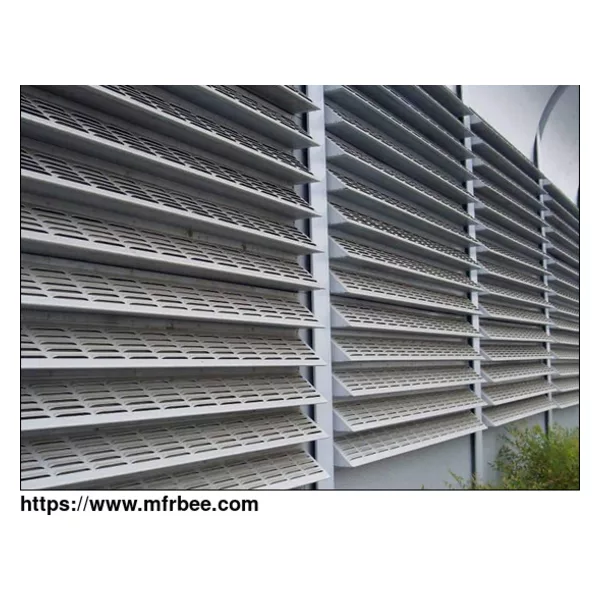

Bar grating panels and perforated panels fabricated in sizes are popularly used as louver gratings for shade screening and air flow.

Bar gratings for louvres are welded pressed grating

Qindelin louvre gratings work as shielding screen, ventilation grilles, facade cladding panels, fencings to stop people from peering through on bridges, gangways, elevated walkways,and other sites. It has four different louver blade angles.

Varying degrees of shading and ventilating effects are achieved by angle changing of the cross bars pressed in, 15°, 30° or 45°.
It is made of aluminum, stainless steel or carbon steel bright galvanized.

Welded Louvre Steel Galvanized Grating

Specification:
The louvre gratings can be manufactured in sizes up to:
Pressure welded gratings: H: 3000 mm W: 1230 mm

Mesh sizes:
Minimum: 20x30 mm
Maximum: 100x100 mm
Both subject to specification and panel size.
Custom sizes upon request.

Angels:
The louvre gratings may be manufactured with angled bars in the following degrees:
30°, 40°, 45° and 50°

Edge bar:
Flat bar plate or angle section (as requested).

Finish: Mill finish, galvanized, hot dipped, or stainless steel.
Surface: Flat
Features:
Easy flow of air, light and heat.
