Galvanized Steel Grating

Galvanized steel grating with heavy zinc coating protection serves widely as strong, quick and durable bearing structural elements in offshore oil rig platforms, refineries, walkways, and many other industries. Steel gratings galvanized make an better choice over non-galvanized steel bar grating due to the fact that the galvanized coating helps protects the steel from corrosion.

Platform Grating, is mostly made of heavy welded bar grating galvanised. Steel gratings serrated or grating panels combined with diamond pattern checker plate are safer and popular platform grating solutions.

We supply quality galvanized gratings to Europe, Canada, USA, Japan and many other countries.

Galvanized Steel Grating Panels
Grating, Hot Dip Galvanized, serrated to BS 4592, Size 19ft x 3ft
Rectangular pattern with hexagonal or square twisted cross bars.
- Size of bearing bars: 40mm x 5mm serrated.
- Spacing between bearing bars: 30mm, connected together
with 8mm hexagonal twisted rod every 100mm.
- Top surface of bearing bars shall be serrated.
- Grating panels shall be hot dip galvanized of minimum 460GM/M ^ 2.
- Pitch of cross bars: 50mm.
- Grating suitable for Max. SPAN 67" for 1/4" deflection under uniform working load of 6.6 KN/M ^ 2.
- The grating bar shall be closed end.
Common grating dimensions: 1" x 1/8" x 36" x 24"

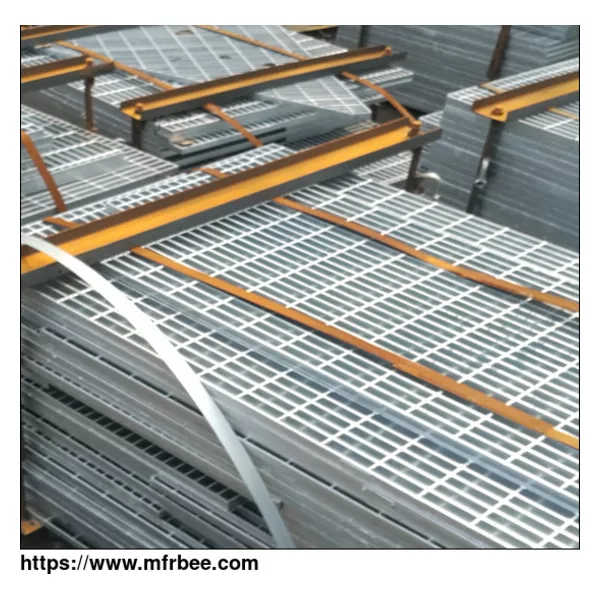

Sheets of Galvanized Grating
Details:
Sheet dimensions:
2400mm load bar length
1200mm sheet width
Thickness: 32mm x 5 Flat bar

Galvanized Steel Platform Grating - Grid Safety Mats / Mattress
32x5 - 45kg per square meter, including fastening mat
Galvanized grates 30/5 type, heat galvanized
Grate step: 240x800
Details:
Stair tread with non-slip reinforced nosing
Hot dip galvanized
Mesh: 30x40
Bearing bar: 30x4 including fastening material

Stair Tread Drawing

Serrated Galvanized Grating

Serrated galvanised grating, with clamp / or clips, 6mm thk serrated bars, 25mm distance between serrated bars (internal), 8mm thk tie rods, 103mm distance between serration ties
Sheet length 6000mm, width 1000 mm x 35mm thickness grating
