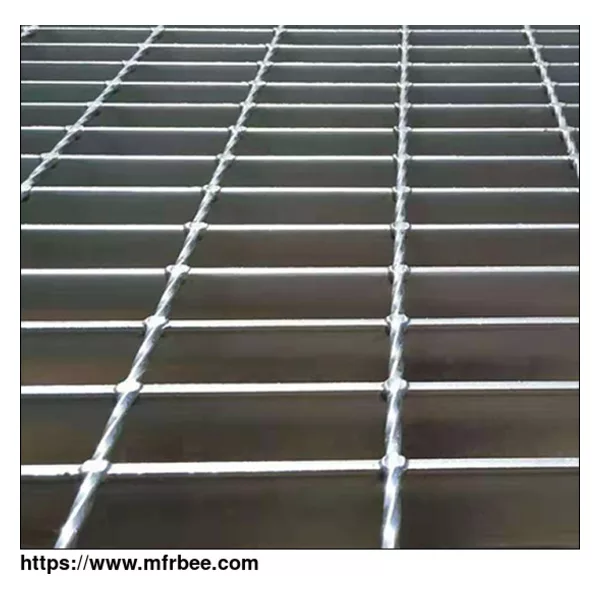

Forge Welded Steel Grating

Welded grating is a made by forge welding of bearing bars automatically resistance-welded with the crossbars through application of intense heat and force. Forge welded steel bar gratings are most popular and versatile industrial grating types, available in a variety of materials, spans, bar thicknesses and loading capacities, particularly suitable as heavy duty gratings for static and dynamic loading in the form of walkways, safety barriers, drainage covers, platforms, ventilation grates and stair treads.

Benefits of Welded Grating:
By pressing and welding to form a homogenous unit of all intersection points, high shear forces can be absorbed. Depending on static or dynamic loading, heavy-duty gratings can be provided for many applications depending on the clear span.

Material: Carbon Steel,Stainless Steel
Surface: Smooth,Serrated
Finish: Mill Finish, Black Primer, H.D. Galvanized

Material Standard:
Mild steel - We utilize a high quality mild steel for load bearing bars, which exceeds the strength of ASTM A36, BS4360 Grade 43A and JIS G3101 SS400, KSD3505 SB41. This is particularly beneficial where a floor is subjected to wheel loads, as deflection becomes a subordinate consideration to the ability of the load bearing bar to withstand high stress.
Stainless Steel Floor can also be manufactured from stainless steel. The normal grade used are 304 and 316, but other grades can be considered upon request.
Manufacturing Standards
Qindelin Gratings are designed and manufacture in accordance with relevant international standards. The figures found in the Load and Deflection tables are calculated in compliance to national standard, while the manufacture conforms to the requirement of international standard.

Common Sizes:

Pitch of Bearing Bar
A center distance between the two bearing bars adjacent to each other.
*Common pitch : 30mm & 40mm
Other : 12.5mm, 15mm, 25mm, 60mm

Pitch of Cross Bar
A center distance between the two cross bars adjacent to each other.
*Standard pitch : 50mm & 100mm.

NOTE
Difference spacing of bearing bar & Cross bar can also be manufacture upon request.

Uses:
Electro-Forged Steel Grating can be used as industrial trucks, stair treads and various floorings.

Heavy Welded Bar Grating
Galvanized steel welded grating panels
Width 24", Span 60"
1/4" x 1" Bearing Bars, 1-3/16" center to center spacing.
Heavy welded cross bars on 4" centers
Smooth surface, Load Banded with equal gauge stubs welded ends.

Welded Steel Bar Grating Supplied with Chequered Plate Steel

Flat Bar Grating welded, hot dipped galvanized finish
Material: Carbon Steel with galvanized finishing
Panel Width x length:Im x 6m
Details:
Non-serrated/smooth bar grating.
Bearing bar size: 1-1/4"x 3/16"
The bearing bars 19/16's(1-3/16)inches on center
Cross bars spaced at 4 inches on center.
Types of bearing bar: Flat bars; made from steel strip or slit sheet, or rolled.
Finishing:Hot Dip Galvanizing, zinc coating minimum average coated per Standards AS1650,BS729 and ASTM A123.
Grating safety guard plate: Checker plate

Press Welded Steel Grating - for industrial platforms

Presswelded steel gratings, not galvanized, natural steel colour
The bearing bars placed edgeways connected with twisted cover rods, embedded with a force of 1000KN, welded at 2500KVA.

Mesh size 34x76mm
Bearing bar 30x3mm
Size of panel 5800x1000mm
Material S235 Low carbon steel
Finish: Zinc coated
Framed
Materials also available:
Steel, zinc coated finish
Aluminum, anodized
Stainless steel, etched

Bearing bar sizes also available:
20x7mm, 30x1mm, 34x3mm, 41x4mm
Anti-skid protection: Notched bearing bar
