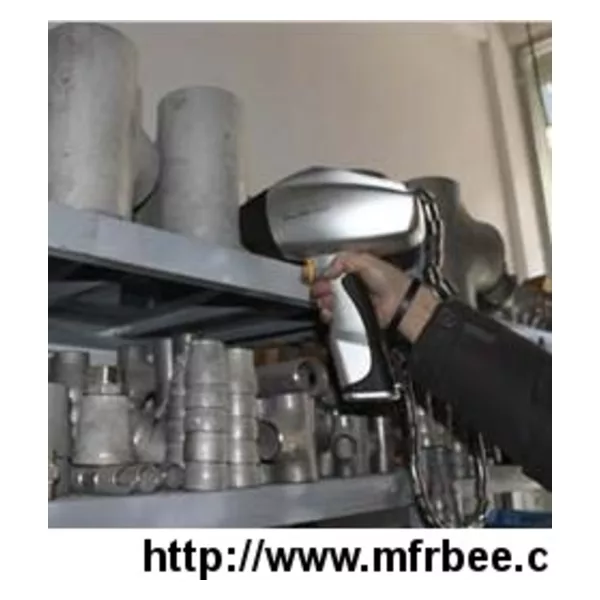

DSHG Alloy Handheld XRF Analyzer

I.Introduction

The DSHG uses X-Ray Fluorescence (XRF) for a quick and completely non-destructive method of testing for lead free manufacturing, RoHS compliance and the detection of heavy metals in toys and consumer products. The DSHG provides rapid and accurate analysis on restricted materials such as lead (Pb), mercury (Hg), chrome (Cr), bromine (Br), and cadmium (Cd) at part per million levels.

II.Brief Description

DSHG Alloy Handheld XRF Analyzer

III.Product Attributes

The product attributes of DSHG Handheld XRF Analyzer.

The DSHG uses X-Ray Fluorescence (XRF) for a quick and completely non-destructive method of testing for lead free manufacturing, RoHS compliance and the detection of heavy metals in toys and consumer products. The DSHG provides rapid and accurate analysis on restricted materials such as lead (Pb), mercury (Hg), chrome (Cr), bromine (Br), and cadmium (Cd) at part per million levels.

The key to the success of the DSHG portable XRF analyzer is Silicon Drift Detector (SDD) technology, which offers count rates and resolution far superior to alternative SiPIN detector technology. The large solid angle and the high count rate capability of the industry-leading XFlash® SDD allows the user to take full advantage of the fluorescent radiation emitted from the sample, resulting in very short measurement times.

IV.Features

1.The first ever SDD-based handheld analyzer

2.Superior count rates and resolution

3.PPM detection limits

4.Rapid and accurate analysis on restricted materials such as lead (Pb), mercury (Hg), chrome (Cr), bromine (Br), and cadmium (Cd) at part per million levels

5.Clarity and usability

6.We believe the best technology should be intuitive and instinctive to use. Every element of the S1 TURBOSDR has been designed with this in mind. The bright display makes it easy to read in any lighting conditions. The touch screen means you can operate the whole machine with one finger, whether inputting a password or pulling the trigger. The operating system is Microsoft Windows® so well known that its almost universal. Data transfer options include Microsoft ActivSync® via USB cable or wireless Bluetooth connection, as well as using an SD card. Built-in memory also makes it possible to store thousands of spectra and millions of results safely.

V.Specification

1.Model: DSHG

2.Weight: 1.5 kg with batteries

3.Dimensions: 30cm(L)*23.5cm(W)*9.8cm(H)

4.Excitation Source: X-ray tube with Ag target; max voltage 50 kV

5.Filters Five (5) available automatic filter positions

6.Detector Peltier cooled 10 mm2 Silicon Drift Detector

7.Power: 2 rechargeable Li-Ion batteries; 6 hours operation per battery; AC adapter is optional

8.Operating Range: -10°C to 50°C

9.Computer/Display HP iPAQ PDA with 240*320; 65,536 colors; back lit; touch screen

10.Testing Modes Assay and Pass/Fail

11.Calibrations:Universal (automatically selects proper calibration); Polyethylene plastics; PVC plastics; Mid-density (glass, ceramics); Alloys; Solders

12.Data Storage: 256 MB standard PDA memory, 512 MB Flash Card; 2 GB SD Card and reader are standard

13.Radiation: Safety Password protected, No sample (backscatter) shutoff, five minute inactive log-in

14.Languages Supported: English, Chinese

15.Warranty: One year
