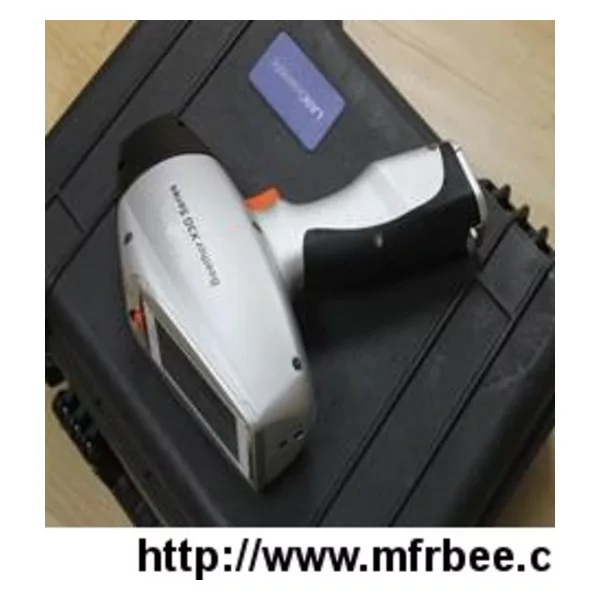

DSHG-960 Handheld Xrf Spectrometer

I.Introduction

DSH promoted DSHG-960 Handheld XRF Spectrometer in 2012, which can supply faster detection speed and better detection effect. The advanced SDD technology improves the total test sensitivity and time in light metal field. Now its probe precision is 3 times more exact than common small electronic SDD. Now our DSHG-960 Handheld XRF Spectrometer is widely used in ore grade and element content analysis, such as iron, chromium, manganese, non-ferrous metals, heavy metals, light metals, noble metals, rare metals, slag, rock, soil, slurry and tails etc.

II. Technical Parameters

1.Model: DSHG-960 Handheld XRF Spectrometer

2.Size and Weight Dimension: 236*97*300mm; Weight<1.5KG

3.Environment Humidity:0~95%;Temperature:-20℃ ~50℃;Bright silver

4.Excitation Source: 50KV/200µA 4W, high power Ag target, new integrated mini X-ray tube

5.X-ray Target: Ag target

6.X-ray Detector

7.High performance Si-Pin/SDD detector, Peltier cooling, resolution<160eV

8.Measurable Elements: All elements from Si (Silicon) to U (Uranium)

9.Filter: Automatic shift among 6 film-filter combination to satisfy various material test

10.Standardization: You can do the test directly without standardization, it is the optional item

11.Balance:DSHG-960 Handheld XRF Spectrometer has good balance and one button design, it can stand on work table, so even long operation will not be tired

12.Heat dissipation: More than 2/3 parts are aluminum alloy case, then total device has better heat dissipation. And DSHG-960 Handheld XRF Spectrometer can do the whole day continuous test without rest in hot area. Then the X-ray analyzer can work more stably and has extremely low failure rate.

13.Display: Fixed angle integrated colorful backlight LCD touch screen, size: 4.2", resolution: 800*480

14.Battery Rundown Time: 2 rechargeable lithium batteries can work 6~8h persistently, 110/220V, 50/60Hz power adapter configured. AC power can be used in laboratory.

15.Radiation Protection:

Aluminum alloy shell has better radiation proof ability, especially the handle place.

Automatic sensor, it will close ray function as there is no sample for test.

16.Data Display: Ppm or percentage to show content, ranked by atom order, content or user, you can count the average value after many tests and connect desktop PC to display;the device shows chemical composition dynamically in measurement.

17.Data Storage: ROM128M, RAM128M, 2G SD card can store 200,000 groups data and spectrum.

18.Data Transmission: Data transfer by USB cable or wireless bluetooth, the file can be transferred with TXT, EXCEL format.

19.CPU: 532MHz CPU,ARM1136-MX31 processor, floating point calculation

20.System CPU peripheral: Apply USB bus, I2C,GPIO, bluetooth, time clock chip and Mini-SD card (can store 2GB data)

21.Operation System: Customized Windows CE 6.0 system

22.Mode: Standard Mining Mode,Alloy Mode,Soil Mode etc.

23.Dust, Fog and Water Proof: Industrial water proof case, superior sealing performance and all-in-one instrument. It can endure harsh environment even under big fog, rain or dusty frock area.
