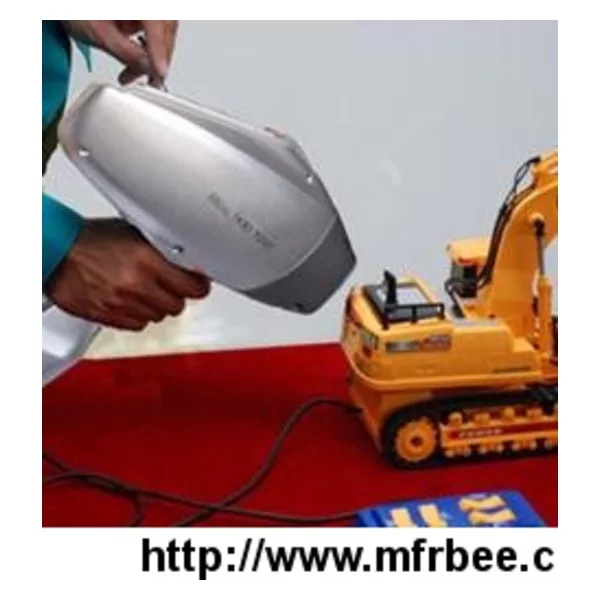

DSHG-600 Handheld RoHs Spectrometer

I.ROHSWEEE

1. Satisfy EU RoHS directive and fast harmful substance content analysis in electrical and electronic products, such as Cd, Pb, Hg, Cr, Br and so on.

2. Aim at the standard demand of halogen free content in IEC instruction, you can use XRF to set fast non-destructive testing method to meet factory simple requirement.

II. RoHs & WEEE Analysis

RoHS &WEEE regulations issued by EU were executed formally in 2006 and 2005. WEEE requires manufactures to process the waste electric appliance and electronics entered into EU market,and also stick Recycling symbol on them after launching the market. So the product design should be useful for resolving and recycling of scrap electronic equipment, also the design should not obstruct the recycling. But EU think just recycling is not enough for hazardous substance, then add RoHs regulation, which claims that the electric appliance and electronics launched in EU market should not contain 6 kinds hazardous substance like Pd,Hg and Cd, also has specific rule for the maximum concentrate value of each substance.

III. DSHG-600 Handheld RoHs Spectrometer Technical Parameters

1.Weight: <1.6kg

2.Dimensions: 300mm*235mm*98mm

3.Excitation Source: high performance mini X-ray tube and power(50KV/200uA maximum)

4.X-ray Detector: High performance Si-Pin/SDD detector, Peltier cooling, resolution<160eV

5.Circuit system: DSP embedded system

6.Battery: 2 rechargeable lithium batteries with heat exchanging,110V/210V common charger,use 4~6h continuously,the charging time is about 2h.

7.Display: Fixed angle integrated colorful backlight LCD touch screen

8.Detection time: 10-200s (handheld or stand type test)

9.Detection limit: All elements from S~U (can change as per to application)

10.Element detection limit: 10ppm~100ppm

IV. Main Features

1.Super large power: 50KV,200uA,4W X-ray tube lets equipment have lower detection limit.

2.EM interference is banned,then even it close to mobile phone or double way wireless communication devices also can work normally.

3.Can endure severe working condition.Full metal high intensity case is more conductive to thermal dissipation,then it can work under 35ﾡ￦ super low temperature with excellent resolution,so it can normally operate in rainy and dusty mine environment.

4.Amazing test precision: just 30s to improve composition accuracy in sample to common instrument level.

5.Professional software for geological mineral sample element test,it has features of high sensitivity,short test time,simple operation and few limit to operator.

6.Small power integrated mini tube,high excitating efficiency,combining with large area berylium window cooling Si-Pin detector,so it owns the similar geological mineral sample test function with desktop instrument.
